Project Overview
In November 2023, Henan Dafang Heavy Machine Co., Ltd. received a quote request email from Russia for 50-tonRMG container gantry crane. A Russian intermodal terminal was in need of reliable container handling equipment for extreme winter conditions. They finally chose Dafang's 50 Ton Rail Mounted Gantry Crane (RMG Gantry Crane) after evaluating multiple international suppliers.

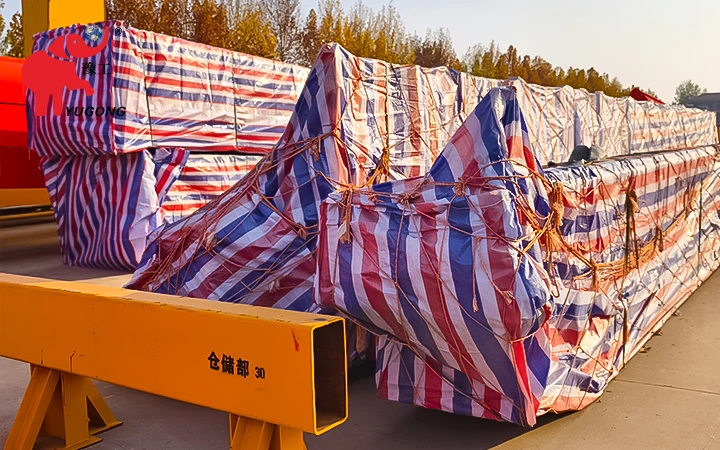

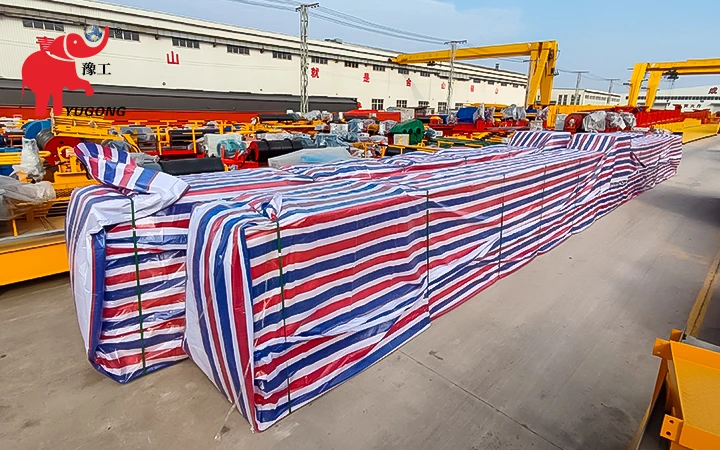

In Feburary, 2024, Dafang have successfully deliverd this RMG equipment to Moscow, Russia. We transported this RMG machine via the China-Europe freight train through Tianjin Port, exiting China via Manzhouli in Inner Mongolia, and then delivered it directly to Moscow. This project shows how proper equipment specification and cold-climate engineering ensure operational reliability in challenging environments.
Project Crane Specifications
| Specs. | Parameters |
|---|---|
| Rated Load Capacity | 50 tons (40-foot loaded containers) |
| Span | 30.5 m (covering 6 container lanes) |
| Max. Lifting Height | 12 m (1-over-5 stacking) |
| Drive Type | Diesel Drive (for the local cold environment) |
| Operating Temperature | -40°C to +40°C |
| Work Duty | A6 (intensive container terminal operation) |
Why Choose RMG Cranes for Container Terminals
Rail-mounted gantry cranes could operate on fixed rail systems. Therefore, they are ideal for high-volume container yards where consistent stacking patterns maximize storage density. Unlike rubber-tired gantry (RTG) cranes, RMG systems eliminate fuel costs, reduce maintenance while enabling precise automated positioning.
RMG Container Cranes' Key Advantages:
Lower Operating Costs
Electric power instead of diesel fuel saves significantly in high-volume operations.
Precise Positioning
Rail guidance allows for automated stacking with minimal operator intervention.
Reduced Ground Pressure
The load is distributed across the rail system rather than concentrated at tire contact points.
Higher Productivity
Optimized travel speeds and precision controls lead to faster cycle times.
For terminals processing 100,000+ TEU annually, these operational advantages justify the higher initial investment compared to RTG systems.
Cold Climate Engineering: Critical Considerations
Russian winter operations need specialized engineering beyond standard container crane design. Dafang's technical team considered several key factors:

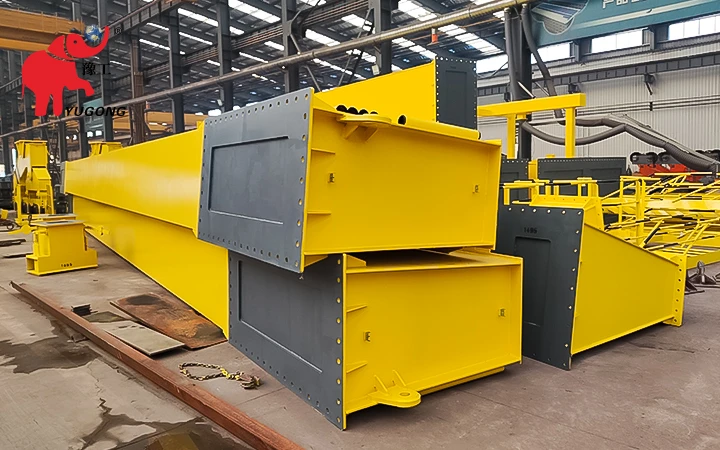

Structural Protection
- Low-Temperature Steel: All structural components use steel grades maintaining toughness at -40°C. Standard steel becomes brittle in extreme coldness, creating fracture risks under dynamic loads.
- Welding Specifications: Special welding procedures and filler materials ensure joint integrity across the full temperature range. Cold-weather welding protocols prevent stress cracking.

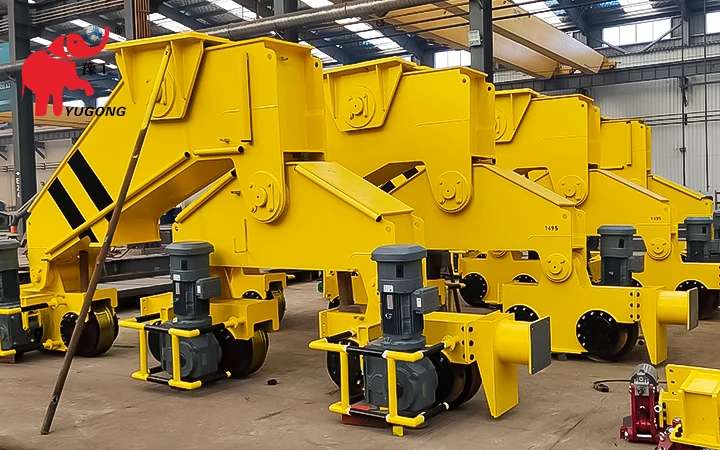

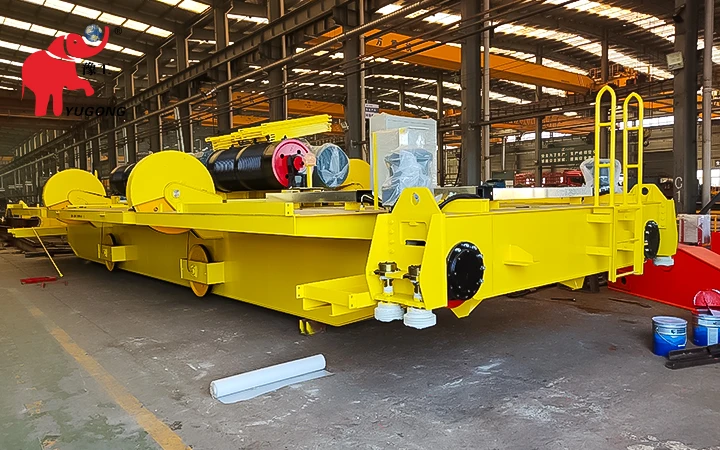

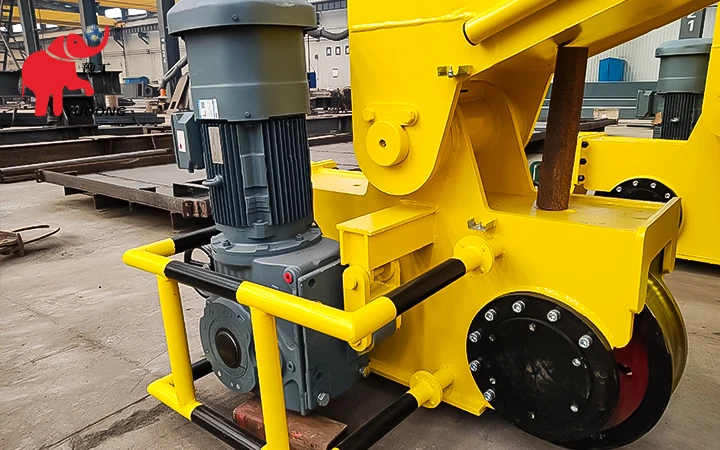

Mechanical Systems
- Heating Systems: Electric heating elements in gearboxes, motors, and control cabinets maintain operating temperatures to stop lubricant congealing during idle periods.
- Cold-Weather Lubricants: Special synthetic lubricants maintain proper viscosity from -40°C to +40°C.
- Enclosed Operator Cabin: Cabin with defrost systems, insulated walls, and auxiliary heating. Operators' comfort impacts productivity in winter conditions.

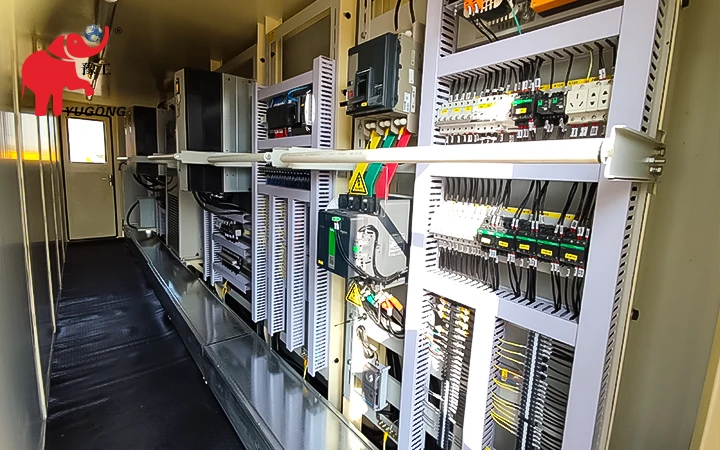

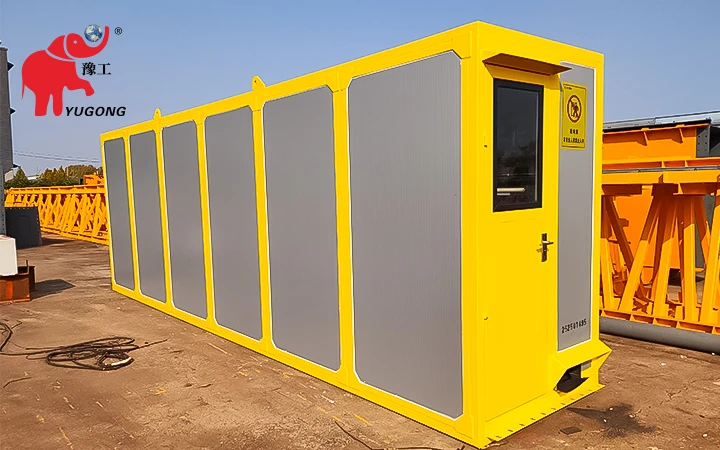

Electrical Protection
- Insulation Ratings: All RMG container crane electrical components are rated for extreme temperature cycling. It can prevent condensation damage during temperature transitions.
- Cable Flexibility: Specialized cable compounds could remain flexible at -40°C. Standard cables crack when cold, causing electrical failures.
Project Execution and Results
Manufacturing and Testing
Production completed over 12 weeks with rigorous quality control and testing:
- Full load testing at 62.5 tons (125% rated capacity)
- Function testing of all movements and safety systems
- Cold-chamber testing of critical electrical components
- Complete documentation package in Russian and English
Installation Support
Dafang provided on-site technical supervision during RMG container gantry crane installation:
- Rail alignment verification (tolerance: ±3mm over 120-meter length)
- Electrical system commissioning
- Safety device calibration
- Operator and maintenance training
Installation completed in 3 weeks despite challenging winter conditions.
Operational Performance
The customer has since ordered two additional RMG cranes for terminal expansion. After 18 months of operation, the crane shows excellent reliability:
- Uptime: 97.3% (excluding scheduled maintenance)
- Productivity: 22 container moves per hour average
- Maintenance: Routine servicing only—no major component failures
- Energy Efficiency: 15% lower power consumption than client's previous RTG cranes
Important Matters for Container Crane Operators
Specification Accuracy Matters
Under-specifying duty cycle or environmental conditions causes operational problems in 2-3 years. This Russian terminal correctly specified A6 duty rating and full temperature range, ensuring long-term reliability.
Cold Climate Requires Engineering
Standard container cranes fail in extreme environments. Specialized materials, heating systems, and component protection are essential for operation below -20°C.
Manufacturer Experience Counts
Dafang's prior cold-climate installation experience in Mongolia, Kazakhstan, and northern China provided engineering knowledge to prevent common failures. First-time exporters to cold regions often miss critical details.
RMG vs. RTG: Making the Right Choice
Choose RMG When:
| Annual volume exceeds 75,000 TEU |
| Fixed stacking patterns optimize space utilization |
| Electric power infrastructure exists |
| Long-term operating cost reduction justifies higher initial investment |
| Automation or semi-automation planned |
| For high-volume terminals with established infrastructure, RMG cranes typically achieve payback within 4-6 years through reduced operating costs. |
Choose RTG When:
| Operational volume under 50,000 TEU annually |
| Flexible yard layouts needed |
| Lower initial capital available |
| Electric infrastructure limited |
| Seasonal volume fluctuations require equipment redeployment |
| Automation or semi-automation planned |
Bulk Cargo Areas
Conclusion And Project Outcomes
This 50-ton RMG project shows that proper equipment specification, cold-climate engineering, and experienced manufacturing ensure reliable container handling in demanding environments. The Russian terminal's 97.3% uptime and 15% energy savings validate the approach.
Container terminal operators evaluating RMG systems should prioritize manufacturers with cold-climate experience, comprehensive testing, and long-term parts availability. Equipment operating 16-20 hours daily in extreme conditions needs in-depth engineering.
Henan Dafang Heavy Machinery Co., Ltd. offers engineering support for global container terminal projects. Contact our technical team to discuss your requirements.
