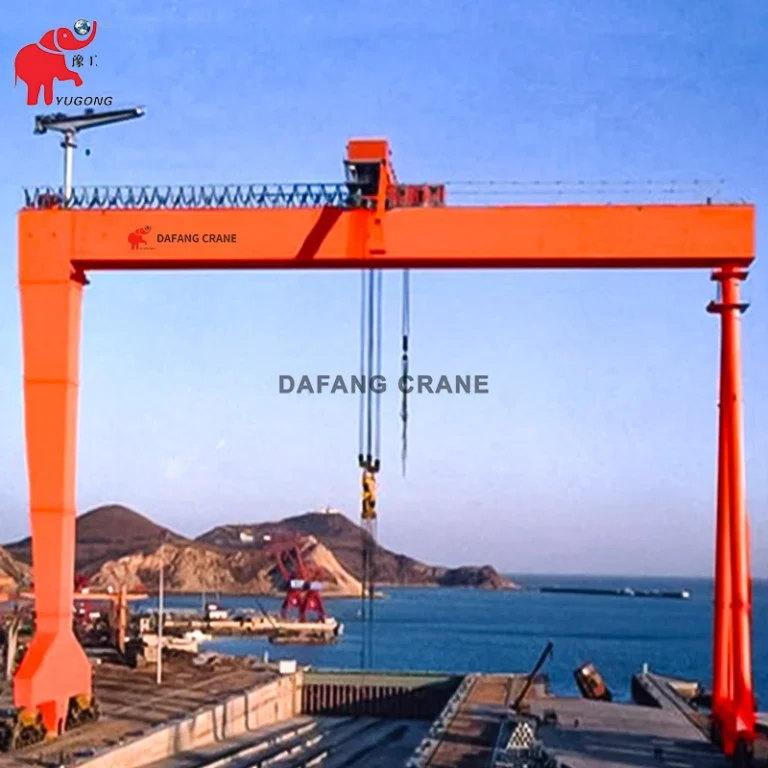

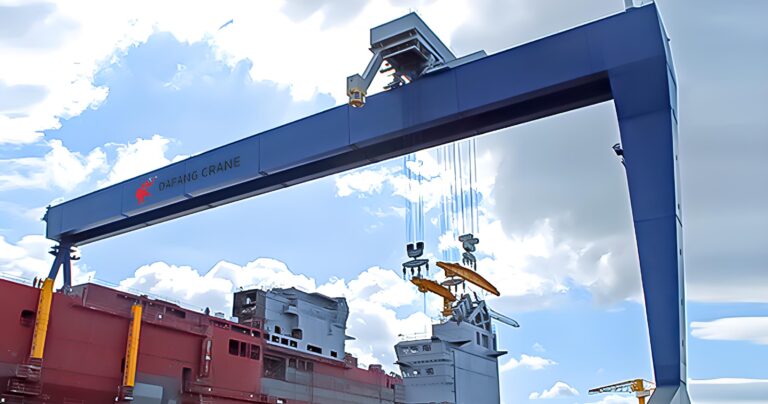

Shipbuilding Gantry Crane

A Shipbuilding Gantry Crane is a heavy-duty rail-mounted portal crane purpose-built for ship assembly, block lifting, and drydock operations. Dafang's shipbuilding cranes cover 300–3,000 ton lifting capacity, 20–200 m span, and 28–76 m lifting height, making them one of the widest-range cranes in the market. They serve three primary sectors: shipyards, offshore fabrication yards, and heavy marine engineering facilities. Every unit is CE-certified under Machinery Directive 2006/42/EC and manufactured under ISO 9001:2015.

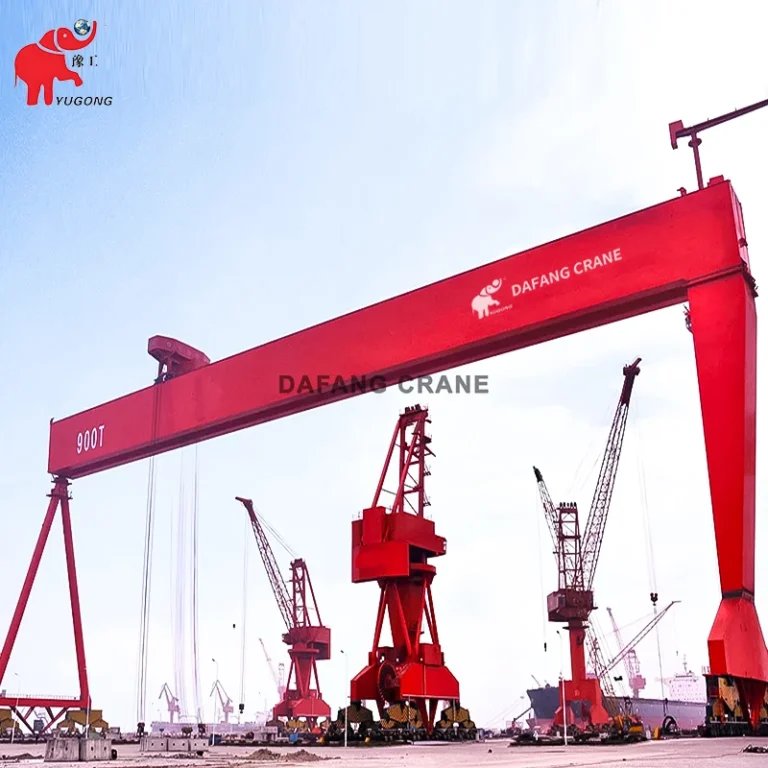

What Is A Shipbuilding Gantry Crane?

A shipbuilding gantry crane is a rail-mounted portal structure specifically engineered to lift and position ship blocks, hull sections, and heavy marine components during vessel construction or drydock maintenance. Unlike standard industrial gantry cranes, a shipbuilding variant operates at working grades M7–M8 (ISO 4301), meaning it handles frequent, heavy, and shock-inducing load cycles without fatigue failure.

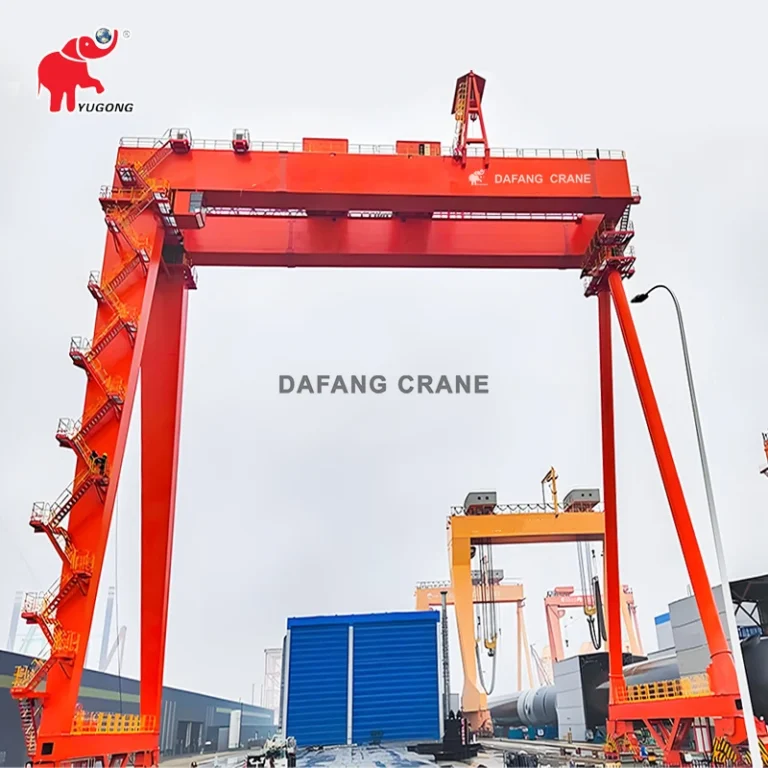

Structurally, the crane consists of two vertical legs, a horizontal main girder spanning the construction berth or drydock, a hoisting trolley, and a rail-mounted travel system. Because shipyard berths can extend beyond 180 m, the span range of 20–200 m is a defining capability. Moreover, the 28–76 m lifting height accommodates both shallow and deep drydock configurations.

What Are the Features of Shipbuilding Gantry Crane?

• M7–M8 duty class design (ISO 4301) — FEA-verified structural steel fabrication sustains heavy, repeated shock loads across a 25-year design life without fatigue fracture.
• Storm-lock braking system — rated to 55 m/s wind speed per GB/T 3811, preventing uncontrolled crane movement during coastal storms when the crane sits unloaded.
• Inverter-controlled hoisting and travel — smooth acceleration profiles reduce dynamic load factors on slings and structural connections; positioning accuracy reaches ±10 mm.
• PLC tandem synchronisation — master-slave control holds two cranes within ±5 mm during synchronised lifts, protecting block geometry.
• IP54 electrical enclosures — all switchgear and motor terminal boxes meet IP54 (IEC 60529), resisting the salt-laden, high-humidity environment of coastal shipyards.
• Anti-corrosion coating system — hot-dip galvanised fasteners and multi-layer epoxy paint system rated to ISO 12944-6 corrosivity category C5-M (marine).
• Variable-speed travel drives — both bridge and crab travel use inverter control, allowing slow-creep positioning at 0.5 m/min for precision block mating.

Which Industries Use Shipbuilding Gantry Cranes?

Three sectors account for the majority of shipbuilding gantry crane deployments:

• Commercial Shipbuilding Yards

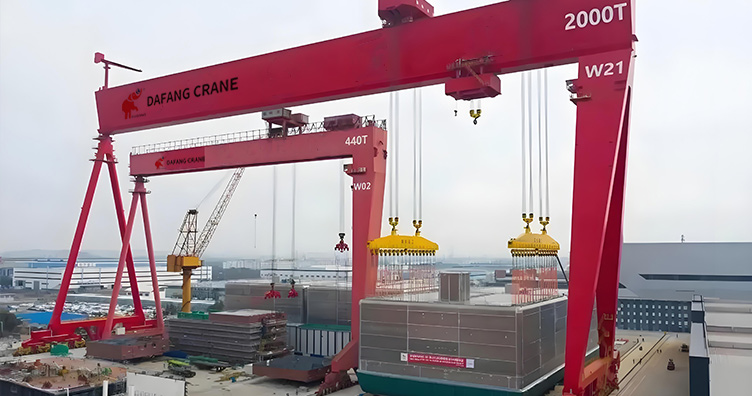

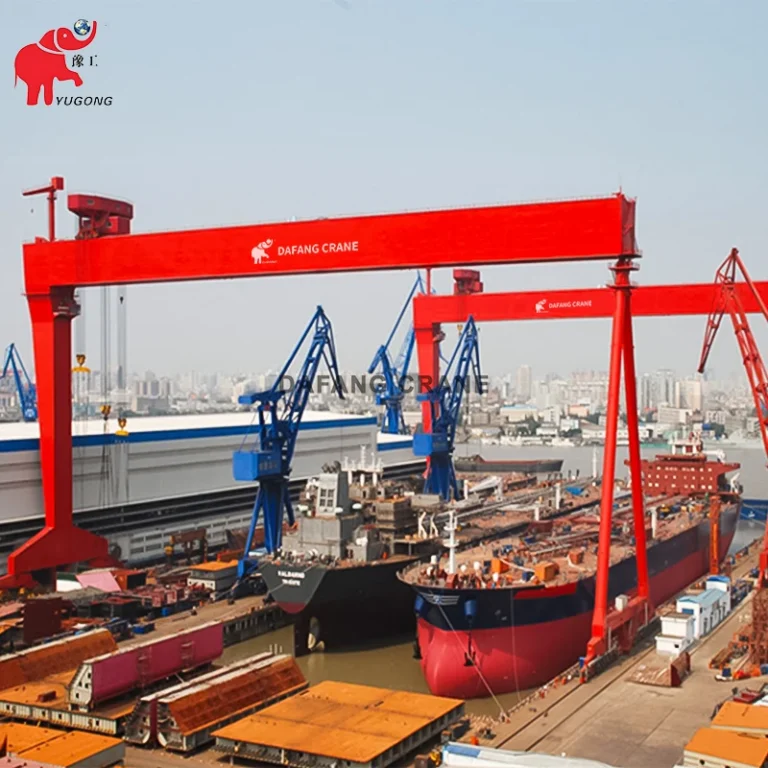

  • Block pre-assembly and erection is the primary use case. Cranes lift prefabricated hull sections — some exceeding 1,500 ton — and lower them onto the keel blocks with millimetre precision. Furthermore, the long span covers both the pre-assembly hall and the building berth in a single crane installation.
• Offshore Platform and FPSO Fabrication
  • Offshore module yards use shipbuilding-class gantry cranes to handle topsides modules, jacket leg sections, and mooring structures. The M8 duty class suits the intensive 24/7 production schedules common in offshore fabrication. [Link: Hydropower Gantry Crane] provides a comparison for inland heavy-civil applications.
• Naval and Submarine Facilities
  • Naval dockyards specify additional redundancy in hoisting brakes and structural safety factors beyond civilian standards. Dafang configures these units with dual independent braking per FEM 1.001 Section 9 and load monitoring systems that log every lift event for defence contractor compliance.
• Ship Repair and Drydock Operations

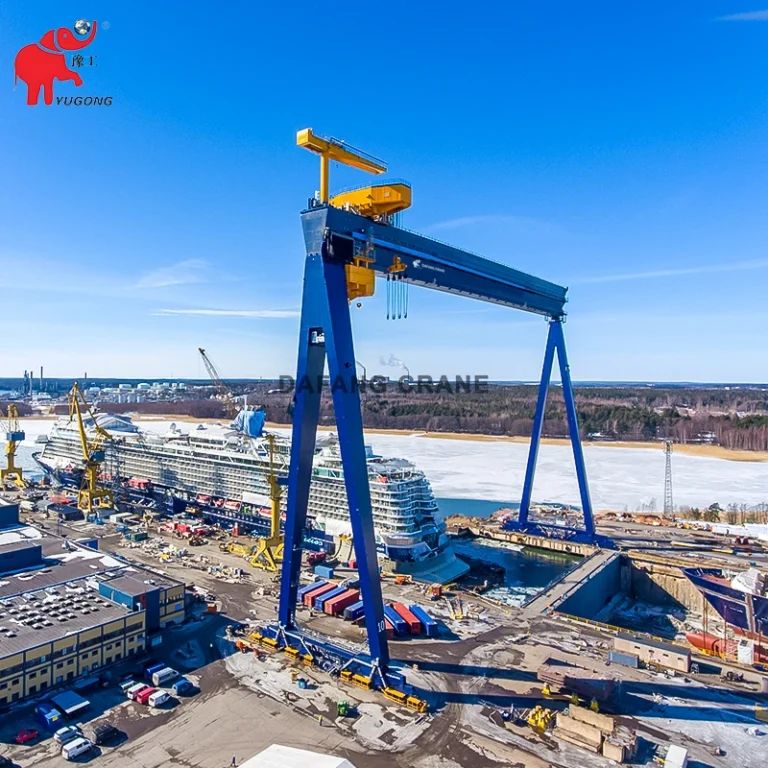

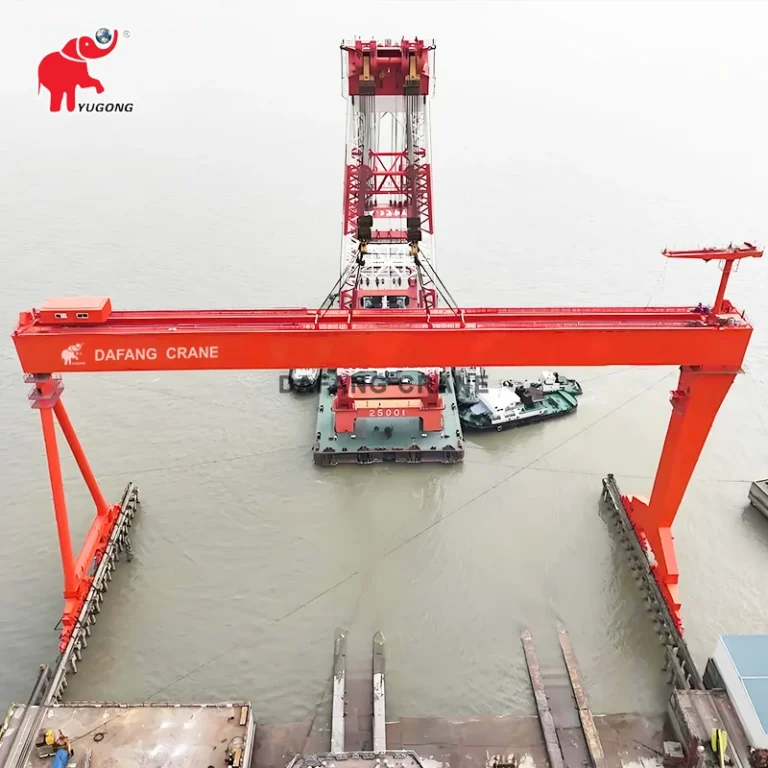

  • Repair yards use gantry cranes for engine removal, propeller shaft replacement, and hull block substitution. In this context, the 28–76 m lifting height range covers drydocks from small coastal repair facilities to the largest VLCC-class graving docks.

Technical Specifications

Parameter	Specification
Loading Capacity	2×50+100t、2×75+100t、2×100+160t、2×150+200t、2×400+400t or customized
Span	50～185m or customized
Lifting Height	28～76/10～50m or customized
Lifting Speed	Main hook lifting: 0~1 m/min or customized Aux.hook lifting: 0~5 m/min or customized
Cross Travel	0~8m/min or customized
Long Travel	0~25m/min or customized
Span	36~230m or customized
Lifting Mechanism	Electric winch trolley(single trolley, upper trolley, lower trolley, double trolley, or customize)
Electrical Parts Brand	SCHNEIDER, SIEMENS, CHNT, or customized
Motor Brand	ABM. ABB, WEG, JMS, XINDALI, SIEMENS, or customized
Reducer Brand	SEW, TAILONG, or customized
Brake Brand	JINGU, ZPMC, or customized
Work Duty	M7~M8
Power Supply	AC-3Phase-220/230/380/400/415/440V-50/60Hz or customized
Control Method	Wireless remote control, cabinet control
Application Area	Shipyard, dock, power station, logistic, etc.
Color	Red, blue, or customized
Working Temperature	-20~40℃ or customized
Protection Class	IP54 / IP55 / IP65
Safety Device	Buffer, current overload protection, overload device, power failure protection, lifting height limit device, traveling limit device

All parameters are configurable. Submit berth dimensions, lifting weight, and duty cycle for a site-specific engineering review. Power supply voltage customizable to local grid standards.

Professional Shipbuilding Crane Manufacturer Certificate

• CE Declaration of Conformity — Machinery Directive 2006/42/EC
• ISO 9001:2015 Quality Management System — full production traceability
• Structural design per FEM 1.001 (European crane classification standard)
• Working grade classification per ISO 4301 (M7/M8 heavy-duty classes)
• Structural steel per GB/T 700 (Q235B) and GB/T 1591 (Q355B/Q460C for high-stress members)
• Welding quality per ISO 3834-2 (comprehensive quality requirements for fusion welding)
• Anti-corrosion coating system per ISO 12944-6 (C5-M marine environment category)
• Electrical equipment per IEC 60204-1 / GB 5226.1
• Wind load resistance per GB/T 3811 (crane design specification)

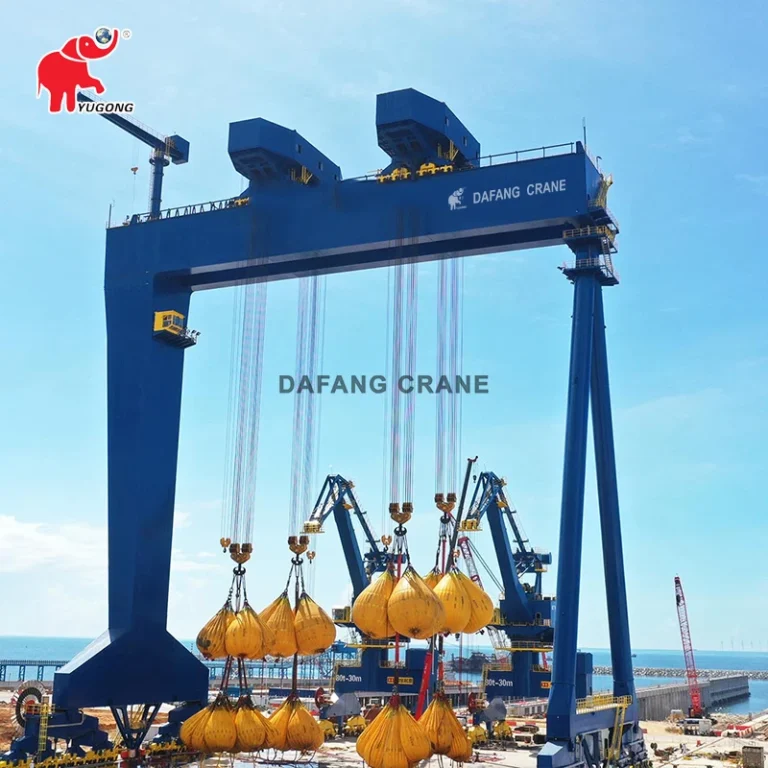

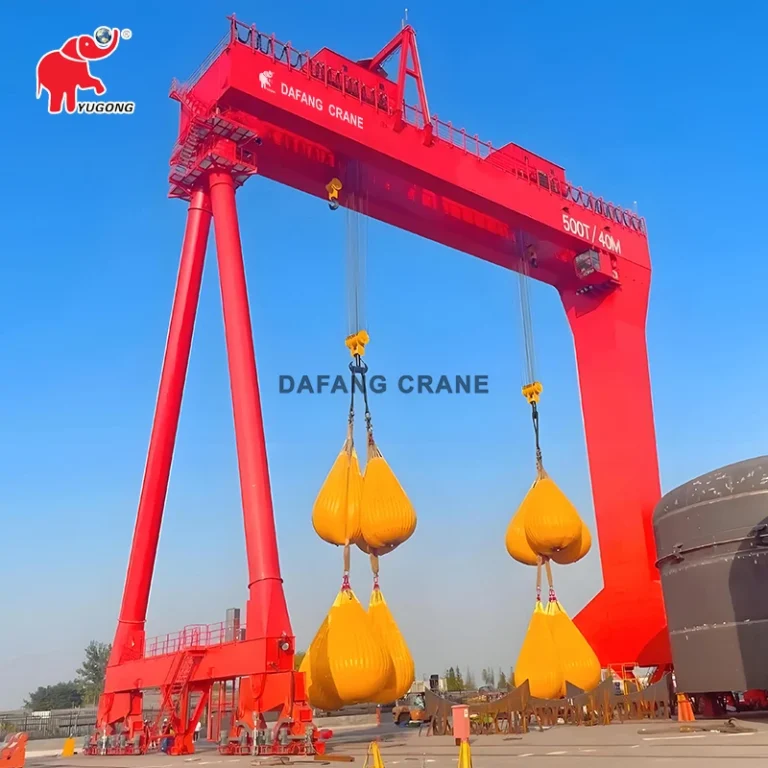

• Full load test certificate and third-party inspection report with each unit

Reference: ISO 9927 (periodic inspection of cranes), EN 13001 (crane safety design principles).

Why Choose Dafang for Your Shipbuilding Gantry Crane?

Dafang has engineered shipyard lifting equipment since 2006, supplying units to major commercial shipyards, offshore fabrication yards, and naval facilities across more than 30 countries. Engineering design, structural fabrication, electrical assembly, and site commissioning all operate from the integrated Henan production base. However, experience alone does not differentiate. The following capabilities drive repeat business:

• In-house finite element analysis (FEA) — every main girder and leg structure undergoes FEA before fabrication begins, verifying deflection stays within L/1000 at rated load (ISO 4301).
• Full-scope project delivery — civil foundation design, rail engineering, crane manufacture, site installation, load testing, and operator training from a single contract.
• Custom span and capacity engineering — the 20–200 m span range and 300–3,000 ton capacity cover everything from coastal repair yards to the world's largest building berths.
• Coastal environmental hardening — IP54 enclosures, C5-M anti-corrosion paint, and stainless-steel hardware are standard, not optional extras, for shipyard environments.
• CE and ISO documentation package — every unit ships with CE declaration, load test report, weld records, electrical schematics, and O&M manual as standard.

Frequently Asked Questions

What is the maximum lifting capacity of a shipbuilding gantry crane?

Dafang's shipbuilding gantry crane reaches 3,000 ton maximum lifting capacity. However, most commercial shipyard block lifts fall between 300 and 1,500 ton. Capacity selection depends on the maximum block weight, dynamic load factor, and the required safety factor per FEM 1.001.

How does tandem lift synchronisation work on large shipbuilding cranes?

A master-slave PLC system links two cranes on a shared communication bus. The master crane transmits real-time position and load data; the slave adjusts its speed to maintain synchronisation within ±5 mm. As a result, rigid blocks lift without induced bending stress that could distort hull geometry.

Which working grade applies to continuous drydock operations?

ISO 4301 grade M8 applies to continuous drydock and active shipbuilding duty. M8 denotes very heavy utilisation — over 50% of operating time under full or near-full load. Therefore, Dafang specifies M8 structural steel members, M8-rated wire ropes, and drum/sheave ratios matching this duty class.

Can a shipbuilding gantry crane operate in coastal storm conditions?

Yes, with the storm-lock system engaged. Dafang's storm-lock braking, rail clamps, and anchoring devices hold the crane stationary in winds up to 55 m/s, complying with GB/T 3811. Moreover, anemometers trigger automatic slow-down at 20 m/s and full stop at 28 m/s during lifting operations.

Is the crane span adjustable after installation?

Span is fixed at manufacture based on the berth geometry. However, Dafang's engineering team works with clients during the project definition phase to optimise the span within the 20–200 m range, accounting for future berth expansion plans where applicable.
