Available Types: CD/MD Wire Rope · FEM European Standard · Explosion-Proof · Low-Headroom · Electric Chain
Dafang's 10 ton hoist is an electric lifting unit rated at 10,000 kg. It mounts directly onto overhead cranes, gantry cranes, jib cranes, and I-beam monorail systems. Five configurations are available to match different duty cycles, headroom conditions, and hazardous area classifications.
The CD/MD is Dafang's most widely exported 10 ton hoist model. Wire rope wound on a grooved drum; electric motor + reducer drives the hook up and down, with an integrated trolley for lateral travel along the crane beam.
CD = single-speed hoisting
MD = dual-speed hoisting (full speed + 1/10 micro-speed for precision lowering)
Get Free Quote

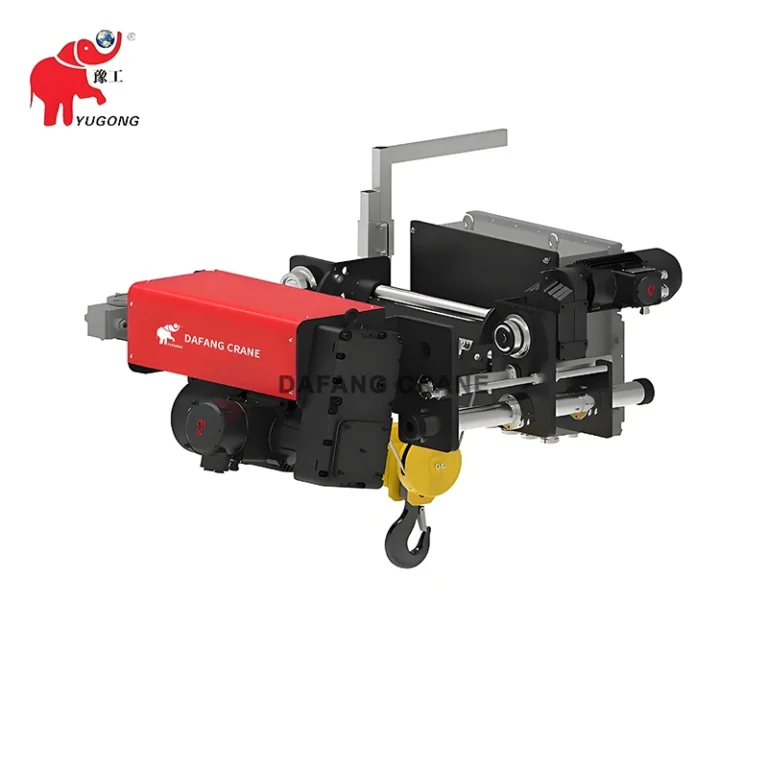

Conforms to FEM (Fédération Européenne de la Manutention) engineering standards. Smaller footprint and lighter weight than the CD/MD. Variable frequency drive (VFD) provides stepless speed control for smooth, shock-free load handling.
| Parameter | Value |
|---|---|
| Lifting Capacity | 10 ton |
| Lifting Height | 3 – 30 m |
| Hoisting Speed | 7 m/min (CD) / 7 + 0.7 m/min (MD) |
| Travelling Speed | 20 – 30 m/min |
| Wire Rope Length | 3.6 – 25.5 m |
| Work Class | A3 (FC = 25%) |
| Power Supply | AC 380V 50Hz (customizable) |
| Control | Pendant / wireless remote |
| Certification | CE, ISO 9001 |
Applications: Mechanical manufacturing · warehouses · mining · construction sites · port loading
| Parameter | Value |
|---|---|
| Lifting Capacity | 10 ton |
| Lifting Height | 9 – 24 m |
| Lifting Speed | 5 / 0.8 m/min (dual-speed) |
| Travelling Speed | 2 – 20 m/min |
| Hoist Body Length | 798 – 1,668 mm |
| Work Duty | M5 |
| Drive | VFD variable frequency |
| Certification | CE, ISO 9001, FEM |
Applications: Automotive assembly lines · precision manufacturing · electronics · high-bay warehousing
| / | CD/MD Wire Rope | FEM Standard (European) |
|---|---|---|
| Body Size | Standard footprint | Compact — shorter body length, lower dead height |
| Hook Approach | Standard | Reduced — more usable lift under the same beam |
| Drive | Fixed speed (contactor) | VFD variable frequency — stepless, shock-free |
| Start / Stop | Step change, load swing risk | Smooth ramp — minimal load oscillation |
| Brake | Conical rotor brake | Precision disc brake — tighter positioning accuracy |
| Gearbox / Motor Life | Standard | Extended — VFD eliminates inrush current stress |
| Maintenance | Periodic brake & rope checks | Maintenance-free design — lower long-term cost |
| Work Duty | A3 (FC = 25%) | M5 — higher cycle frequency supported |
| Best For | General lifting, moderate cycles | Precision assembly, automotive, high-frequency use |

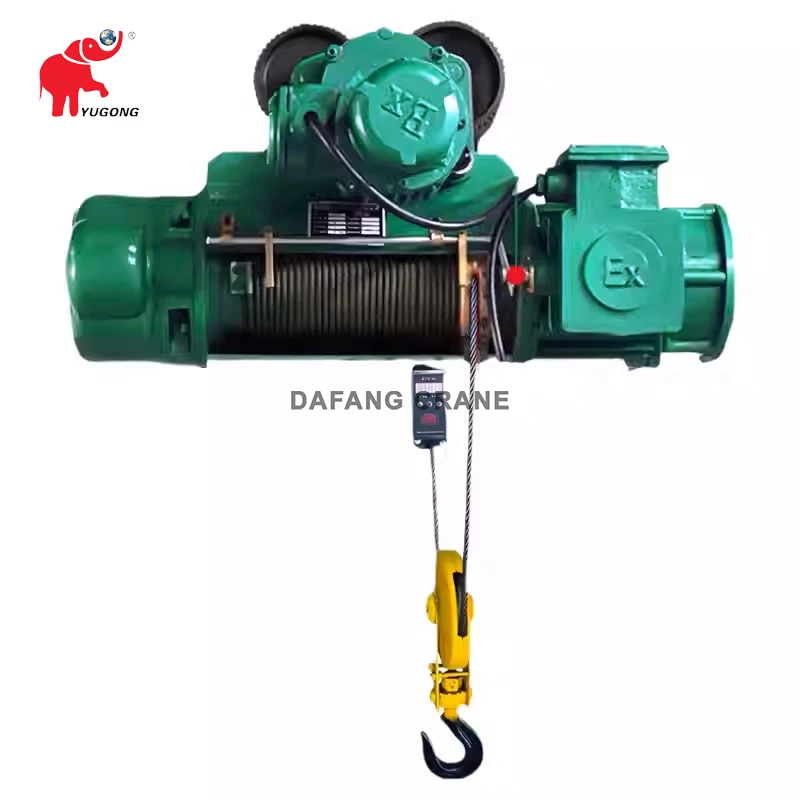

All motor enclosures, control boxes, and junction boxes use certified flameproof (Ex d) construction. Complies with ATEX Directive 2014/34/EU and IECEx standards. Available in ExdIIBT4 (ethylene, propane, LPG) and ExdIICT4 (hydrogen, acetylene) grades.

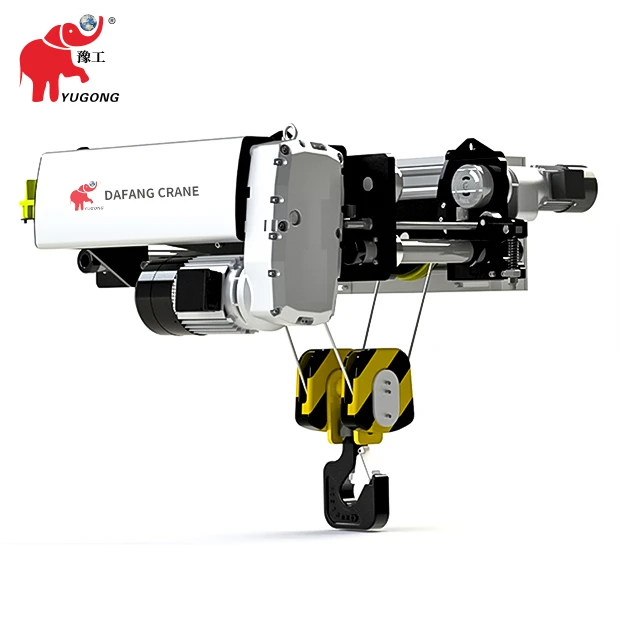

Motor, gearbox, and drum are repositioned to reduce the overall hoist height. Achieves the same 10-ton rated capacity as the standard model with a significantly lower hook dead zone — critical when beam clearance is limited.
| Parameter | Value |
|---|---|
| Lifting Capacity | 10 ton (wire rope type) |
| Lifting Height | 6 – 30 m (custom to 45 m) |
| Hoisting Speed | 7 / 0.7 m/min |
| Work Duty | M3 – M5 |
| Explosion-Proof Grade | Ex d IIB T4 / Ex d IIC T4 |
| Motor Enclosure | Flameproof cast iron, IP65 |
| Operating Temperature | -20°C to +40°C |
| Power Supply | Configured per project |
| Certification | CE · ATEX 2014/34/EU · IECEx · GB3836 |
Applications: Petrochemical refineries · chemical plants · pharmaceutical API zones · paint manufacturing · battery factories · grain processing · coal mining
| Parameter | Value |
|---|---|
| Lifting Capacity | 10 ton |
| Lifting Height | 9 – 24 m |
| Hoisting Speed | 7 / 0.7 m/min |
| Travelling Speed | 18 – 20 m/min |
| Power Supply | AC 380V 50Hz (customizable) |
Applications: Existing factory retrofits · low-ceiling warehouses · mezzanine installations · workshops with structural obstacles between beam and floor
Grade 80 / Grade 100 alloy steel load chain driven by a motor-and-sprocket mechanism. Compact integrated design results in a smaller hook approach dimension than a wire rope hoist of the same capacity. Spring-loaded friction brake holds the load mechanically during power loss.
| Parameter | Value |
|---|---|
| Lifting Capacity | 10 ton |
| Lifting Height | 6 – 30 m |
| Work Duty | M3 – M4 |
| Chain Grade | Grade 80 / Grade 100 |
| Brake | Spring-loaded friction, mechanical hold |
| Suspension | Fixed hook / electric trolley |
| Operation | Electric pendant / manual options |
Applications: Assembly lines · mold changes · equipment maintenance · shipyards · offshore platforms
| CD/MD Wire Rope | FEM European | Explosion-Proof | Low-Headroom | Chain | |
|---|---|---|---|---|---|
| Lifting Height | 3 – 30 m | 9 – 24 m | 6 – 30 m | 9 – 24 m | 6 – 30 m |
| Lifting Speed | 7 / 0.7 m/min | 5 / 0.8 m/min | 7 / 0.7 m/min | 7 / 0.7 m/min | Varies |
| Work Duty | A3 | M5 | M3–M5 | A3 | M3–M4 |
| Drive | Fixed speed | VFD | Fixed / VFD | Fixed speed | Fixed speed |
| ATEX Certified | — | — | ✓ | — | — |
| Compact Height | Standard | ✓ Compact | Standard | ✓ Lowest | ✓ Compact |
| Best For | General use | Precision / high cycle | Hazardous areas | Height-limited | Assembly / maintenance |
All specifications are customizable. Non-standard voltages (460V/60Hz, 415V/50Hz, etc.), lifting heights, and duty classes confirmed at engineering stage before production.
Price Reference
Type Lifting Height Ex-Works Price (USD) CD/MD Wire Rope Hoist 3 – 30 m $1,350 – $1,900 FEM Standard Hoist 9 – 24 m $3,850 – $4,350 Electric Chain Hoist 6 – 30 m $1,550 – $2,100 Explosion-Proof Hoist 6 – 30 m $3,450 – $4,050 Low-Headroom Hoist 9 – 24 m $3,800 – $4,250 Price varies with: lifting height · duty class · explosion-proof grade · power supply spec · control type · certification package.
Selection Guide
Confirm these 5 parameters before ordering:
# Parameter What to Measure / Specify 1 Duty class Lifts per hour · hours per day · average load as % of rated capacity 2 Lifting height Floor to maximum hook position, in meters 3 Available headroom Beam underside to floor minus crane structure depth 4 Power supply Voltage · frequency · phases (e.g., 380V / 50Hz / 3-phase) 5 Environment Indoor/outdoor · temperature range · hazardous area zone + gas group (if applicable) Quick-match table:
Your Situation Specify This Type General workshop, standard ceiling CD/MD Wire Rope Automotive line, frequent cycles, positioning accuracy required FEM European Standard Zone 1 / Zone 2 hazardous area Explosion-Proof (confirm gas group → IIB or IIC) Low ceiling, existing building retrofit Low-Headroom Assembly line, mold change, tight headroom Electric Chain Hoist
Certifications
Certificate Scope CE (Machinery Directive 2006/42/EC) All standard and FEM hoists ISO 9001 Manufacturing quality management ATEX 2014/34/EU Explosion-proof models IECEx Explosion-proof models (international) GB3836 Explosion-proof models (China national standard) Factory test: every unit undergoes 125% rated load testing before shipment. Test report included in shipping documentation.
Henan Dafang Heavy Machine Co., Ltd. has manufactured electric hoists since 2004, producing 30,000+ units per year and supplying customers across 130+ countries in Southeast Asia, the Middle East, Africa, Europe, and the Americas. Every unit ships with full CE and ISO certification documentation. Explosion-proof models are produced and certified in-house under ATEX 2014/34/EU and IECEx — no third-party dependency. As a direct manufacturer, Dafang eliminates trading company margins, delivering a 30–40% cost advantage over equivalent European-branded units. Before shipment, every hoist is load-tested at 125% rated capacity on Dafang's own 100-ton test rig, with the test report included in the shipping package.
