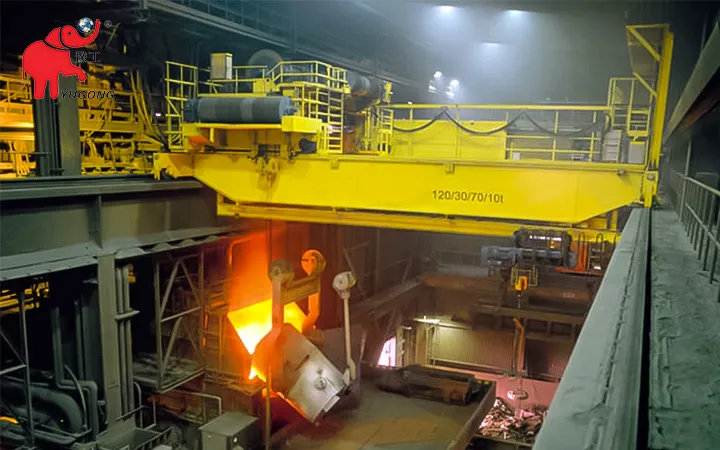

What Is Steel Mill Ladle Crane? An Efficient Solution For Molten Steel Handling
Steel Mill Ladle Crane, as a customizable heavy-duty steel ladles lifting solution, is the core equipment for transferring high-temperature molten steel ladles in steel plants.
Capable of handling molten steel ladles ranging from 10t to 300t, withstanding radiant heat over 1000℃. Its special design makes it to operate in extreme conditions (high heat, heavy dust, strong electromagnetic interference).
It is a specialized double girder overhead bridge crane with the main girder structure, trolley, hoisting mechanism, traveling mechanism, electrical control system, and multi-layer safety devices. Advanced models are equipped with intelligent monitoring systems for real-time performance tracking.
Dafang Crane designs and customizes steel mill ladle cranes to match workshop span, operation rhythm, and load requirements. It ensures seamless connectivity between steelmaking, refining, and continuous casting processes. Ladle crane excels for safety, reliability, and productivity.
1. Ultimate Safety Guarantee: Multi-dimensional protection systems (overload protection, limit switches, emergency braking, anti-drop hooks) eliminate risks of molten steel leakage or ladle falling. This is critical for high-hazard molten metal handling. Heat-resistant steel structure and insulation layer to resist high-temperature corrosion; and the Explosion-proof & high-temperature resistant electrical components for harsh environments.
2. Maximized Operational Efficiency: Adjustable lifting and traveling speeds and precision positioning system reduce transfer time, boosting overall steelmaking productivity.
3. Extreme Environment Adaptability: Engineered to operate stably in high-heat, dusty, and corrosive gas environments, compatible with converter steelmaking, EAF steelmaking, and continuous casting processes.
4. Heavy-Duty Stability: Robust overhead bridge design ensures exceptional load-bearing capacity and structural rigidity. This enables the smooth transportation of large-tonnage ladles with minimal sway.
5. Smart & Low-Maintenance: Integrated intelligent monitoring tracks temperature, load, and braking status in real-time; modular design of key components simplifies inspection and replacement, lowering maintenance costs.
Ladle Crane Applications
Converter Steelmaking Workshops: Transfer molten steel ladles from converters to refining furnaces or continuous casting machines (CCMs). It serves as the core linking equipment to ensure seamless connection between steel smelting and downstream processes.
Electric Arc Furnace (EAF) Workshops: Transport ladles of molten steel produced by electric arc furnaces to refining stations or casting platforms. It supports uninterrupted production flow in EAF steelmaking lines.
Continuous Casting Workshops: Accurately position molten steel ladles on tundishes or turntables of continuous casting machines. It enables stable and uniform molten steel pouring for billet, bloom, or slab production.
Molten Steel Refining Workshops: Move ladles to specialized refining furnaces for composition adjustment, desulfurization, deoxidation, and impurity removal, improving molten steel quality.
Ladle Preprocessing & Maintenance Areas: Transport empty or semi-empty ladles to preheating stations (for temperature preservation) or maintenance workshops (for lining repair/replacement). It ensures that ladles are ready for subsequent molten steel handling.
Clear obstacles along the lifting path and ensure no personnel in the operation area.
2. Ladle Lifting
Maneuver the crane to align hooks with ladle lugs precisely; secure the connection.
Lift the ladle slowly until it clears the ground/platform; pause to check load distribution and stability.
3. Transit Phase
Transport the ladle smoothly to the target station using anti-sway technology to minimize oscillation.
Monitor ladle status throughout to prevent molten steel spillage.
4. Positioning & Lowering
Accurately position the crane above the target (e.g., caster turntable, refining furnace); lower the ladle gently to the designated location.
Release the hook only after confirming the ladle is securely placed.
5. Reset & Post-Operation
Raise the hook and return the crane to the standby area for the next task.
Clean and inspect the equipment post-operation; record operational data.

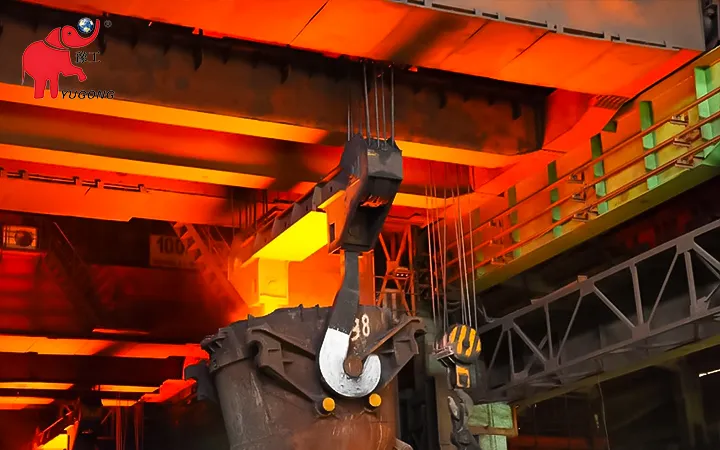

Stell Mill Ladle Hook
Customized Solutions by Dafang
Dafang’s Steel Mill Ladle Crane can be customizable to match your plant’s specific requirements—including molten steel capacity, workshop span, and production rhythm. We balance safety, efficiency, and cost-effectiveness to deliver specialized solutions that drive your steelmaking operations forward. Contact us today to discuss your customization needs and get a professional quote!
