Wall Travelling Jib Crane

Description

The Wall Travelling Jib Crane is a lightweight lifting equipment for efficient utilization of wall space. It consists of cantilever system, the electric wire rope hoist and control system. The cantilever is made of lightweight metal or steel and can slide freely along the wall track. In addition, the length and rotation angle of the cantilever can be customized to meet a wide variety of lifting needs. The electric hoist is responsible for lifting materials. There are traditional type wire rope hoist or European hoist to choose. The staff can precisely control the lifting speed and running speed of the electric hoist through the hand-held electric gate, etc. Wall travelling jib crane cleverly utilizes the wall space of the factory building to realize the vertical movement of the cantilever through the track, greatly improving the utilization of space.

Structures and Parts

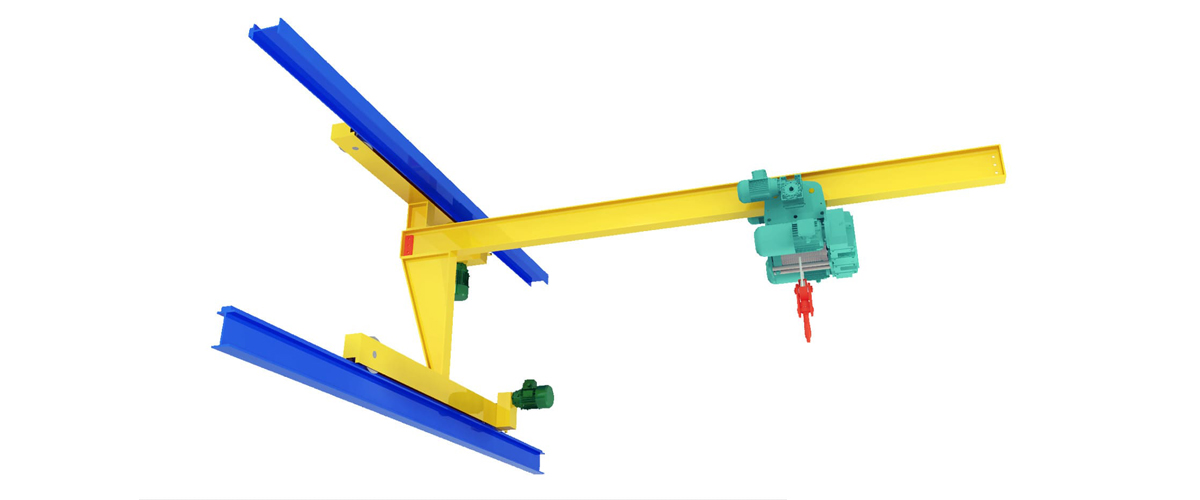

Wall traveling Jib Crane consists of a cantilever beam, slewing devices, electric chain hoist and other parts.

The jib arm can rotate 180° or 360°. The angle actually depends on the requirements and its customizable design. It drives the roller through the reducer in the slewing device to realize flexible slewing movement. You can customize the length of jib arm to suit your specific workspace and lifting requirements.
The electrical control system works with the electric chain hoist. The electric chain hoist can support the lifting operation and move horizontally and reciprocally on the cantilever beam.
The rail system can be installed along various types of walls, such as solid concrete or steel structures.

Technical Parameters

Lifting Capacity	0.5 ~5 ton
Lifting Height	5~6 m
Lifting Speed	8 m/min
Traveling Speed	20 m/min
Max Length	4.3~5.43 m
Total Weight	389~420 KG
Slewing Angle	180°,270°, 360° and customized
Work Duty	A3-A5

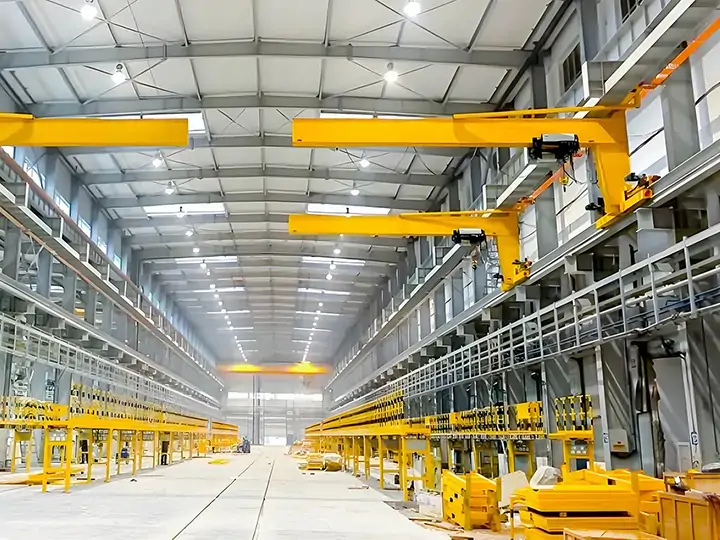

Wall Traveling Jib Cranes For Sale

2 Ton

5 Ton

Customizable

Features of Wall Traveling Jib Crane

Track movement: The cantilever is capable of moving longitudinally along the track, extending the operating range.
Three-dimensional movement: The electric hoist can move horizontally along the cantilever and realize vertical lifting at the same time. It can cover three-dimensional working spaces to meet your needs.
High space utilization: It does not occupy the floor space, especially suitable for narrow or crowded workshop.
Customizable: Parameters such as cantilever length, rotation angle and motor power can be adjusted according to needs, adapting to various working conditions.
Economical and practical: Compact structure, low cost, simple maintenance, and cost-effective.

Main Application

Automobile manufacturing plant: On the engine assembly line, wall traveling jib crane can realize the precise distribution of gearboxes and engine cylinder blocks. Thus it can improve the assembly efficiency.
Chemical industry: Transport all kinds of raw materials and semi-finished products, helping the production process to proceed smoothly.
Logistics and warehousing: Together with automatic conveyor lines to complete directional sorting of goods.
High-rise building: Its vertical lifting capacity can cover different floors, realizing vertical transportation of building materials and helping to improve construction efficiency.
Wharf: Run along the wall track of the wharf building to complete the heavy lifting operation, expanding the operation range.
