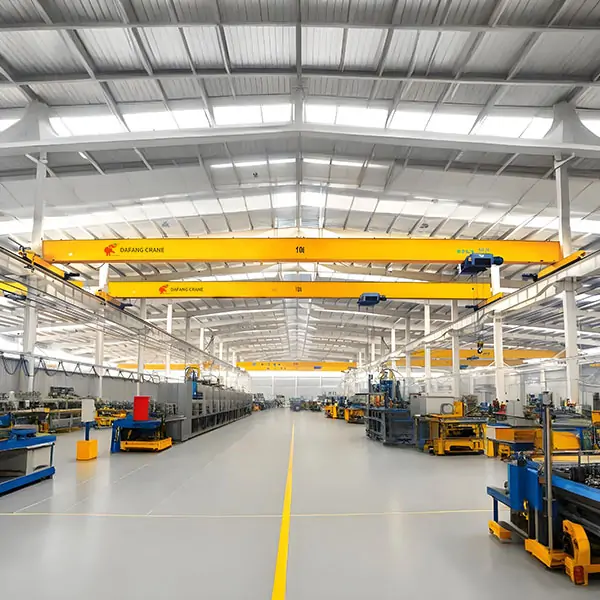

Single Girder Overhead Traveling Crane

Product Introduction

Henan Dafang Heavy Machine Co.,Ltd has specialized in providing high-quality overhead cranes for 19 years since 2006. Dafang Crane offers a wide range of single girder overhead travelling cranes. These single girder overhead traveling cranes can address both light and moderate lifting operation tasks.

Types Of Single Girder Overhead Traveling Cranes

Our single girder overhead travelling cranes are available in various types and configurations, each suited to specific lifting needs and usage scenarios. Let's take a look at the most common types:

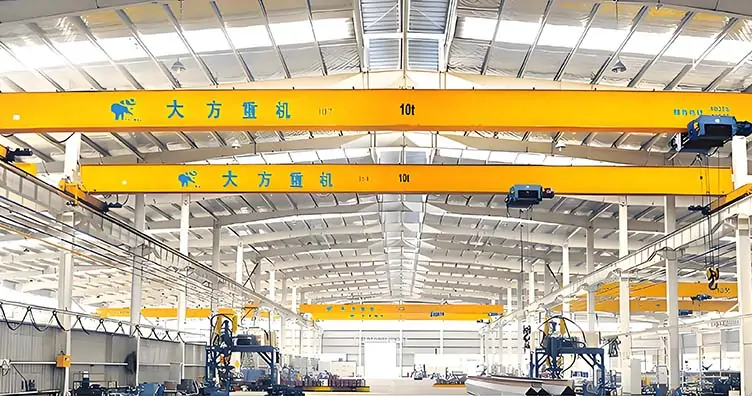

HD European Single Girder overhead Crane

Capacity: 2~20 ton
Span: 10.5~25.5 m
Height: 6~12 m
Trolley Traveling Speed: 2~20 m/min
Crane Traveling Speed: 3~30 m/min

Application:

European single girder overhead traveling crane is suitable for lifting and handling in workshops, warehouses and so on.
Compared with general single girder overhead cranes, it can complete various lifting tasks more efficiently.

Features:

The HD European single girder overhead traveling crane has a more compact structure and a higher load-bearing capacity.
It is easy to install and operate this overhead crane. The HD European crane can effectively improve production efficiency.

Specifications

Type	HD European
Load Capacity	2-20 ton
Span	10.5-25.5 m
Lifting Height	6-12 m
Trolley Running Speed	2-20 m/min
Crane Running Speed	3-20 m/min
Work Duty	A5
Work Temperature	-20℃~40℃

Note: All parameters can be customized according to requirements.

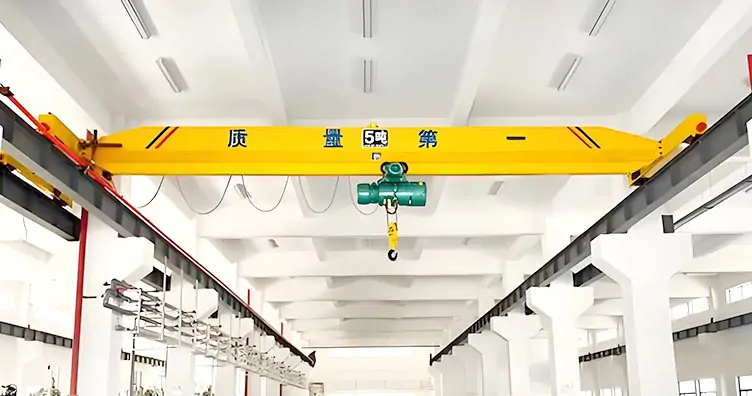

LD Electric Single Girder Overhead Crane

Capacity: 1~32 ton
Span: 3~35 m
Height: 3~50 m
Trolley Traveling Speed: 2~30 m/min
Crane Traveling Speed: 2~30 m/min

Application:

The LD type electric single girder overhead crane can be used in factory workshops, food and beverage factories, textile workshops and other environments, mainly responsible for material handling and lifting.

Features:

The LD type electric single girder overhead crane is the most widely used lifting equipment in factories and plants. This general HD type gradually evolves into other types of single girder overhead crane, such as LX suspension, flexible KBK and LB explosion proof.
The HD type crane has a simple structure, high load capacities. And it is easy to install and maintain.

Specifications

Types	LD Electric
Load capacity	1-32 ton
Span	3-35 m
Lifting height	3-50 m
Hoist running speed	2-30 m/min
Crane running speed	2-30 m/min
Work duty	A3-A5
Temperature	-20-60℃
Protection Grade	IP44-65

Note: Custom designs available.

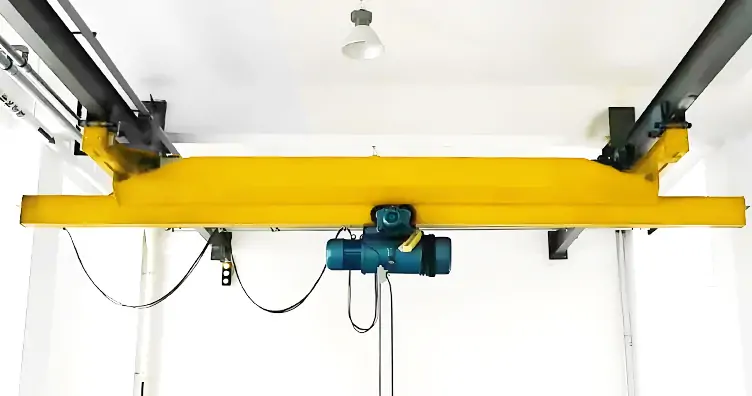

LX Single Girder Suspension Overhead Crane

Capacity: 0.5~10 ton
Span: 3~16 m
Height: 6~30 m
Trolley Traveling Speed: 10~30 m/min
Crane Traveling Speed: 10~30 m/min

Application:

The LX single girder suspension overhead traveling crane is suitable for small standardized factories, warehouses, sewage treatment plants and maintenance workshops. It is an important lifting equipment for small-scale or space-limited working environments.

Features:

The LX single girder suspension overhead traveling crane runs on rails suspended from the ceiling.
The suspension design can save significant ground space. In addition, it has the characteristics of compact structure, light weight and low cost.

Specifications

Types	LX Suspenison
Load capacity	0.5-10 ton
Span	3-16 m
Lifting height	6-30 m
Lifting speed	8/0.8, 7/0.7 m/min
Hoist running speed	10-30 m/min
Crane running speed	10-30 m/min
Working temperature	-20~40℃
Work duty	A3-A4

Note: Custom designs available.

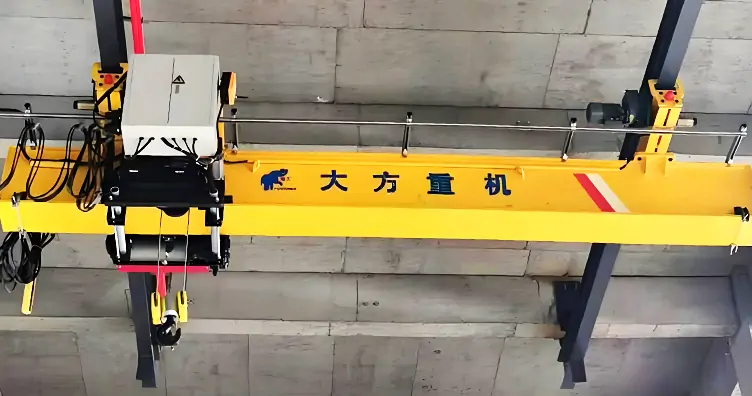

NLX European Underslung Overhead Crane

Capacity: 5~32 ton
Span: 10.5~31.5 m
Height: 6~12 m
Trolley Traveling Speed: 2~20 m/min
Crane Traveling Speed: 3~30 m/min

Application:

NLX European underslung single girder overhead crane is suitable for small standardized factories, warehouses, sewage treatment plants and automobile maintenance workshops.

Features:

The single girder underhung crane runs on rails suspended from the ceiling, offering significant space ground savings.
It has the characteristics of compact structure, light weight, low cost and easy maintenance.

Specifications

Types	NLX European
Load capacity	5-32 ton
Span	10.5-31.5m
Lifting height	6-12 m
Lifting speed	0.7-8 m/min
Hoist running speed	2-20 m/min
Crane running speed	2-30 m/min
Work duty	A5

Note: Custom designs available.

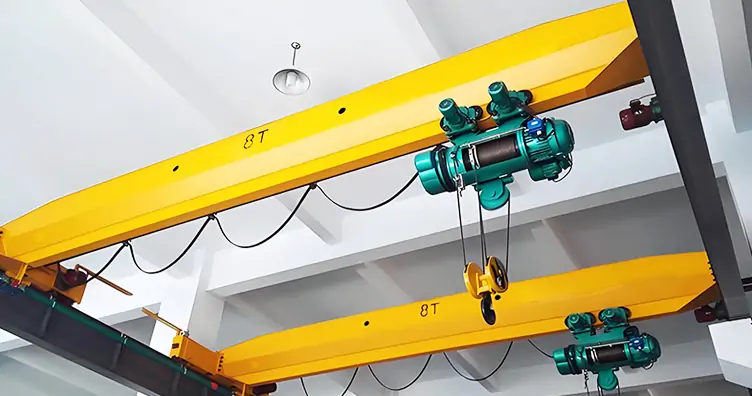

LB Single Girder Explosion-Proof Overhead Crane

Capacity: 1~32 ton
Span: 7.5~28.5 m
Height: 6~40 m
Trolley Traveling Speed: 2~20 m/min
Crane Traveling Speed: 3~30 m/min

Application:

The LB type explosion-proof single-girder overhead crane is mainly used in dangerous environments such as the petroleum, chemical industry, gas stations, etc, where flammable gases exist.

Features:

An explosion-proof electric hoist is used as the lifting mechanism, which has the characteristics of compact structure, small size and large carrying capacity.

Specifications

Types	LB
Load capacity	1-20 ton
Span	7.5-28.5 m
Lifting height	6-40 m
Lifting speed	0.33-8 m/min
Hoist running speed	3-20 m/min
Crane running speed	3-20 m/min
Work duty	A3
Explosion-proof grade	ExdⅡBT4、ExdⅡCT4

Note: All parameters can be customized according to requirements.

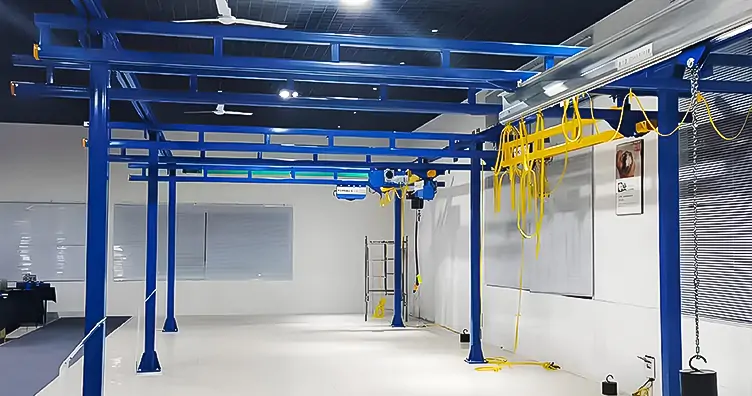

KBK Flexible Crane system

Capacity: 0.5~3.2 ton
Span: 0.7~12 m
Height: 3~12 m
Lifting Speed: 1~22 m/min
Traveling Speed: 3.2~40 m/min

Application:

Underslung single girder overhead crane is suitable for small standardized factories, warehouses, sewage treatment plants and maintenance workshops.

Features:

The single girder underhung crane runs on rails suspended from the ceiling, offering significant space ground savings.
It has the characteristics of compact structure, light weight, low cost and easy maintenance.

Specifications

Types	KBK Flexible
Load capacity	0.5-3.2 ton
Span	0.7-12 m
Lifting height	3-12 m
Lifting speed	1-22 m/min
Traveling speed	3.2-40 m/min
Work duty	A3

Note: Custom designs available.

Single Girder Overhead Crane Parts

Single girder overhead cranes consist of several components that work together to lift and move heavy loads. They consist of the main girder, the end girder, the overhead traveling mechanism, the electric hoist, and other parts. These components mainly include:

Main Beam: Bracket for horizontal installation of electric hoist and determination of lifting span.
End Beam: Mounting overhead Travel Mechanism, Longitudinal movement of the crane.
Electric Hoist: A Device to move the hook up and down. It consists of a motor, gearbox, brake, drum, wire rope, hook, and block.
Remote Controls: Device for controlling the operation of cranes.
Electrical systems: Powering the crane to run.
Safety Device: A protective device against crane lifting overloaded weights.
