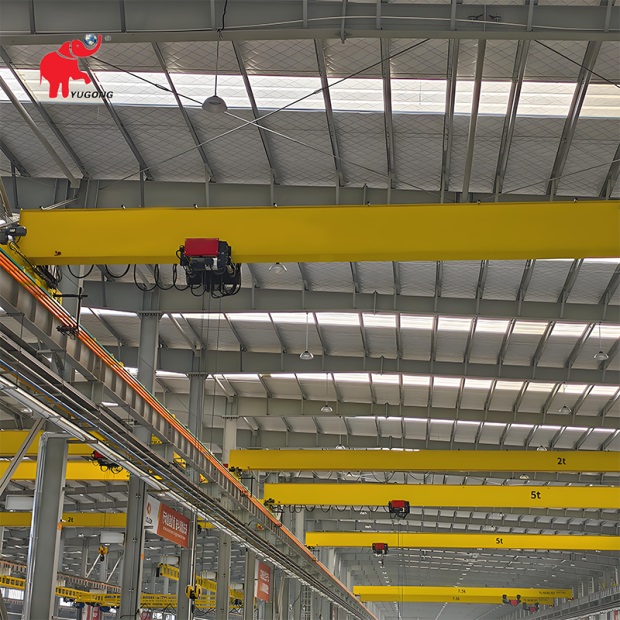

HD European Single Beam Bridge Crane

What Is European Single Beam Bridge Crane?

HD European Single Beam Bridge Crane is a lightweight overhead crane engineered to European FEM/ISO standards, featuring a modular single-box girder design for maximum strength-to-weight ratio. Rated from 1 to 20 tons SWL with spans ranging from 10.5m to 22.5m and lifting heights of 6–12m, it is the ideal solution for heavy industrial lifting, manufacturing assembly, and material handling across a wide range of demanding environments.

The main beam is a square box structure, working with European wire rope electric hoist as its lifting mechanism. It also adopts a dual-speed lifting and variable frequency control method for crane travel and trolley running. It could meet different needs of users' fine operations. The working grade is A5, and applicable ambient temperature is -20~40 degrees.

The operation mode is handle operation, remote control operation or both modes at the same time to meet the requirements of different use occasions. European single beam brige crane has a wide application range in different working sites and industries. For example, it it mainly in workshops, warehouses and other material handling occasions. Applicable industries include machinery manufacturing, metallurgy, petroleum, petrochemical, ports, railways, electricity, paper making, building materials, electronics and other industries. It is especially suitable for material handling that requires precise positioning, precision assembly of large parts.

From the maintenance point of view, the design of European bridge takes into account the factors of easy maintenance. Key components such as lifting mechanism and traveling mechanism are easy to repair and replace, which reduces downtime and ensures the continuity of production. At the same time, the application of high-quality material selection prolongs the service life and reduces the need for daily maintenance.

European Single Beam Bridge Crane Features

• European Engineering Standards: Designed to FEM/ISO specifications for safety, durability, and precision.
• Low Headroom Option: Available in standard and under-running low-headroom configurations.
• Optimized Box Girder Design: Single-beam box girder structure — lightweight yet exceptional load capacity.
• Smooth Running Performance: Precision-manufactured wheels, V-groove rails, and gearboxes for vibration-free travel.
• Customizable Configurations: Choice of hoist type (wire rope / chain), control method (cabin / remote / pendant), and protection class.
• Variable Speed Control: Inverter-driven hoist/travel drives allow stepless speed adjustment for precision positioning.
• Multiple Safety Systems: Overload limiter, emergency stop, limit switches, and anti-collision sensors.
• Easy Maintenance: Plug-and-play electrical components, accessible wear parts, and diagnostic indicators.

Applications of European Single Beam Bridge Cranes

• Steel & Metal Fabrication: Lifting and positioning heavy steel beams, plates, and structural components
• Machinery Manufacturing: Loading/unloading CNC machines, presses, and heavy equipment components
• Automotive Plants: Engine block and chassis assembly line handling
• Power Plants & Energy: Turbine, generator, and transformer installation and maintenance
• Shipbuilding & Dockyards: Hoisting large hull sections and heavy ship components
• Warehousing & Logistics: High-capacity storage and yard stacking operations
• Mining & Cement: Moving ore buckets, cement drums, and processing equipment

Technical Parameters

Product Name	HD European Bridge Crane
Work Duty	A5
Span(m)	10.5~25.5
Max Lifting Height(m)	6~12
Trolley Traveling Speed(m/min)	2~20
Crane Traveling Speed(m/min)	3~30
Work Temperature	-20℃~40℃
Warranty	3-5 years
Power source	3 Phase AC 380V 50HZ or Customized

Professional European Single Beam Bridge CraneManufacturer

Dafang Crane Exhibition

Certificate

FAQ — Frequently Asked Questions

Q1: What is the difference between standard and European single beam bridge crane?

A1: The HD European Single Beam Crane is engineered to FEM (Fédération Européenne de la Manutention) and ISO standards, which mandate stricter tolerances, higher safety factors, better material quality, and more rigorous testing than many domestic or non-standard designs. It offers superior rigidity, smoother operation, longer service life, and better energy efficiency — especially in high-cycle or heavy-duty applications.

Q2: What hoist type should I choose — wire rope hoist or chain hoist?

A2: Wire rope hoists are preferred for heavier loads (above 5 tons), longer lifting heights, and outdoor/hostile environments — they offer better durability and heat resistance. Chain hoists are more compact, lighter, and better suited for lighter loads (under 5 tons) and low-headroom spaces. Our team can help you select the optimal configuration based on your specific load, duty cycle, and space constraints.

Q3: How is the crane installed and what are the civil/structural requirements?

A3: The crane is typically installed on runway beams (I-beam or box-section) secured to factory building structures or freestanding gantries. Required considerations include: ceiling/runway beam load capacity (at least 1.5× the crane's max wheel load), adequate hook clearance, power supply availability, and runway alignment. We provide full installation drawings, foundation guidelines, and can arrange on-site supervision if needed.

Q4: What safety features does the crane include?

A4: Standard safety features include: overload limiter (prevents lifting beyond rated capacity), upper/lower limit switches, emergency stop button, travel limit switches, phase sequence protection, and brake torque testing. Optional upgrades include: anti-collision sensors (for multi-crane runways), remote monitoring systems, wind resistance kits (for outdoor use), and PLC-based diagnostic displays for predictive maintenance.

Q5: What warranty and after-sales support do you provide?

A5: All HD European cranes come with a 12-month warranty covering manufacturing defects and faulty components. We also offer: on-site installation and commissioning, operator training, spare parts supply, preventive maintenance contracts, and 24/7 technical support hotline. Extended warranty and annual maintenance agreements are available upon request.
