EOT Crane

Product Description

Henan Dafang Heavy Machine Co.,Ltd has specialized in providing high-quality overhead and gantry cranes for 19 years since 2006. EOT cranes (Electric Overhead Traveling cranes) are an important lifting equipment in various places, such as workshops, logistic centers, manufacturing factories and plants etc. EOT Cranes provide customized solutions for lifting and transporting a full range of cargo loads. They can simplify operations, save the labor, ensure safety and enhance productivity.

Here is a detailed introduction to EOT Cranes, including the types, price, structure parts, customized solutions and so on.

EOT Cranes Types

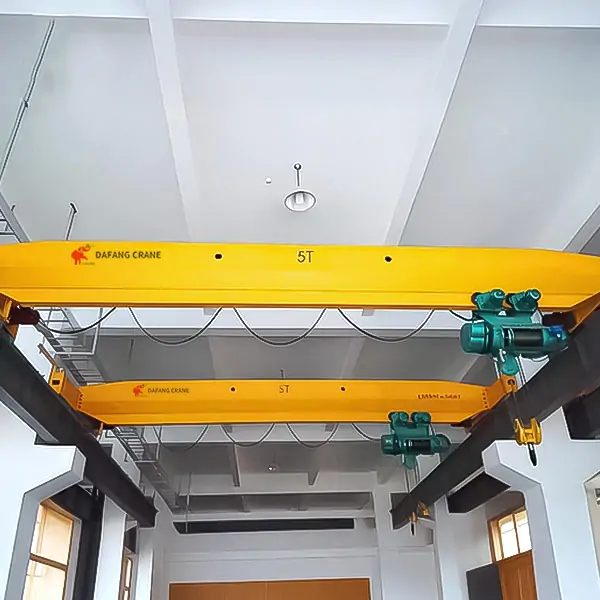

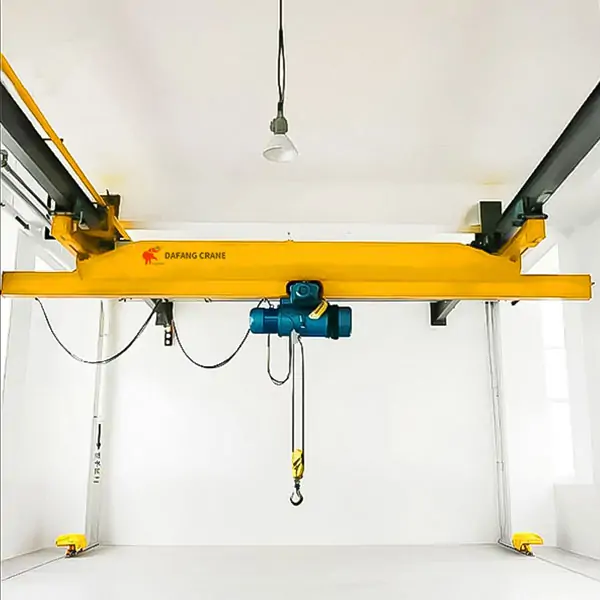

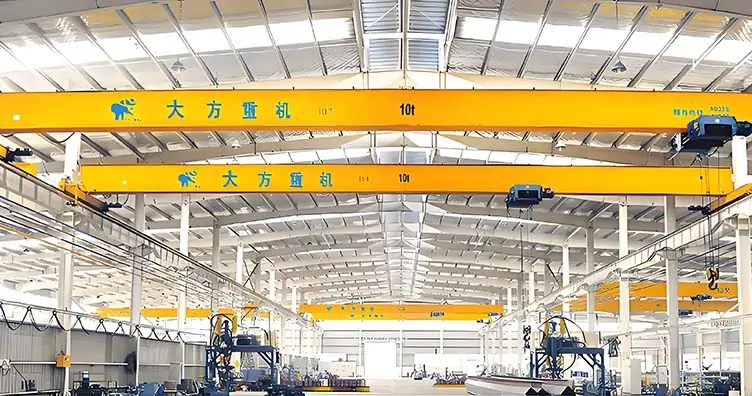

Single Girder EOT Crane

Application:

General manufacturing: handling raw materials and semi-finished products in workshops. Loading and unloading materials on machine tools and assembly lines.
Warehousing and logistics: loading and unloading, stacking goods in small and medium-sized warehouses and distribution centers.
Maintenance and workshop assistance: lifting components during equipment maintenance, and short-distance movement of tools and molds.

Features:

Simple structure: single main beam design, light weight, few parts. Small vertical space occupation for places with limited factory clearance.
Moderate load: The rated lifting capacity is 1-20 tons (customizable up to 32 tons), span 5-30 meters.
Flexible operation: Through electric drive, they can achieve accurate positioning.

Single Girder EOT Crane Specifications

Type	Single Girder EOT Crane
Load capacity	1-32 ton
Span	7.5-31.5 m
Lifting height	6-30 m
Lifting speed	0.3-8 m/min
Trolley running speed	20 m/min
Crane running speed	20 m/min
Work duty	A3-A5

Note: Custom designs available.

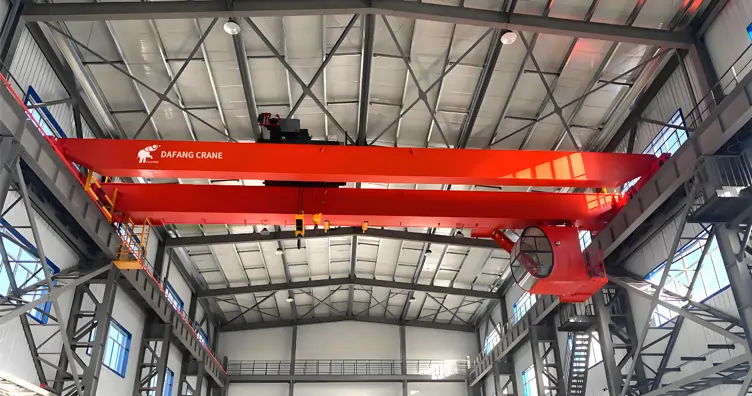

Double Girder EOT Crane

Application:

Heavy manufacturing industry: used for heavy machinery assembly and large parts lifting.
Metallurgy and chemical industry: handling heavy materials such as steel billets and castings. Customizable explosion-proof types are available.
Engineering infrastructure: lifting prefabricated components and large equipment at construction sites.

Features:

Stable structure: double main beam design, strong bearing capacity. Good rigidity, suitable for heavy loads and complex working conditions.
Comprehensive functions: can be equipped with grabs and electromagnetic suction cups. Support multi-mechanism linkage, wider operational adaptability.
Wide application: can cope with large spans and high lift requirements.

EOT Crane Specifications

Type	Double Girder EOT Crane
Load capacity	5-500 ton
Span	10-50 m
Lifting height	10-40 m
Lifting speed	3.9-15.6 m/min
Trolley running speed	7.2-14.6 m/min
Crane running speed	33.9-42.6 m/min
Work duty	A3-A7

EOT Crane Parts

The EOT crane consists of the main girder, end girder, hoisting mechanism, trolley running mechanism, crane running mechanism and other parts. The functional parts are as follows:

Main Beam: Installation of rails for lateral movement of the trolley.
End Beam: Mounting Bridge Travel Mechanism.
Hoisting Mechanism: Device to move the hook up and down.
Trolley Running Mechanism: Lateral movement of the trolley.
Crane Running Mechanism: Longitudinal movement of the crane.

Main Types of EOT Crane Price

Types	Load Capacity	Span	Lifting Height	Price Range
LX Single Girder Suspension EOT Crane	0.5-10 ton	7.5-22.5 m	3-45 m	$3000 ~ $8000, depending on specifications
LD Single Girder EOT Crane	1-20 ton	7.5-31.5 m	3-45 m	$3100 ~ $10000, depending on specifications
LB Single Girder Explosion-Proof EOT Crane	1-20 ton	7.5-28.5 m	6-30 m	$4000 ~ $10000, depending on specifications
QD Double Girder EOT Crane	5-800 ton	10.5-50 M	10-40 M	$23000 ~ $1725000, depending on specifications
QY Insulation Double Girder EOT Crane	5-320 ton	10.5-40 M	10-24 M	$24500 ~ $533750, depending on specifications
QB Explosion-proof Double Girder EOT Crane	5-320 ton	10.5-37.5 M	10-24 M	$24000 ~ $533250, depending on specifications

Note: The table content is for reference only.

Customized EOT Crane

VOITTO Crane always specializes in providing customized lifting solutions to meet specific needs of customers. We can provide modular designs to suit diverse needs.

If you want to know more details about our EOT Cranes, you can share your working conditions and your demands. We will offer you the most suitable solutions for you asap. We can provide customized solutions for the following parameters:

Lifting Capacity: according to the actual situation.
Span: According to the actual situation.
Lifting Height: according to the actual situation.
Hoist Type: Wire rope or chain hoist (CD1/MD1 or European-style) is available.
Control Options: Pendant / Remote / Cabin control is available.
Certification: CE, ISO, EAC etc.
