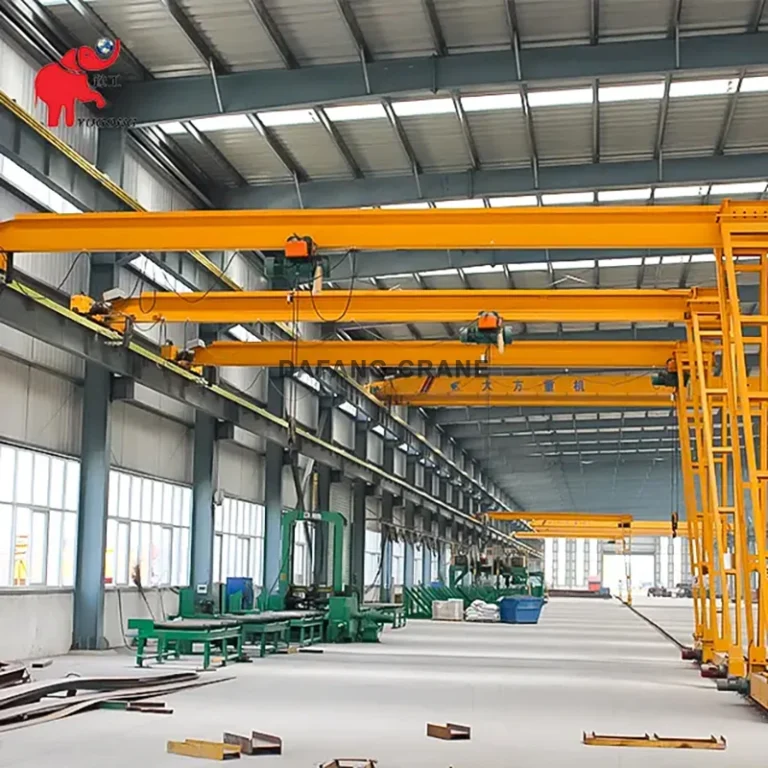

BMH Semi Gantry Crane

Product Description

The single girder BMH semi gantry crane focuses on light weighting and efficiency. The gantry crane is mainly for warehouses, workshops and light industrial production environments. Its single-girder design reduces material usage and installation complexity while maintaining stability with lighter loads (2-10 tons) and spans of 10-20 meters. It is ideal for machine shops and outdoor locations, and excels in environments requiring partial span utilization. By integrating with an electric hoist and a compact gantry frame, it provides flexibility in confined spaces. Maintenance-friendly features such as anti-sway control and modular components can ensure reliable performance. Adhering to international standards, it combines durability and affordability for a wide range of industrial applications.

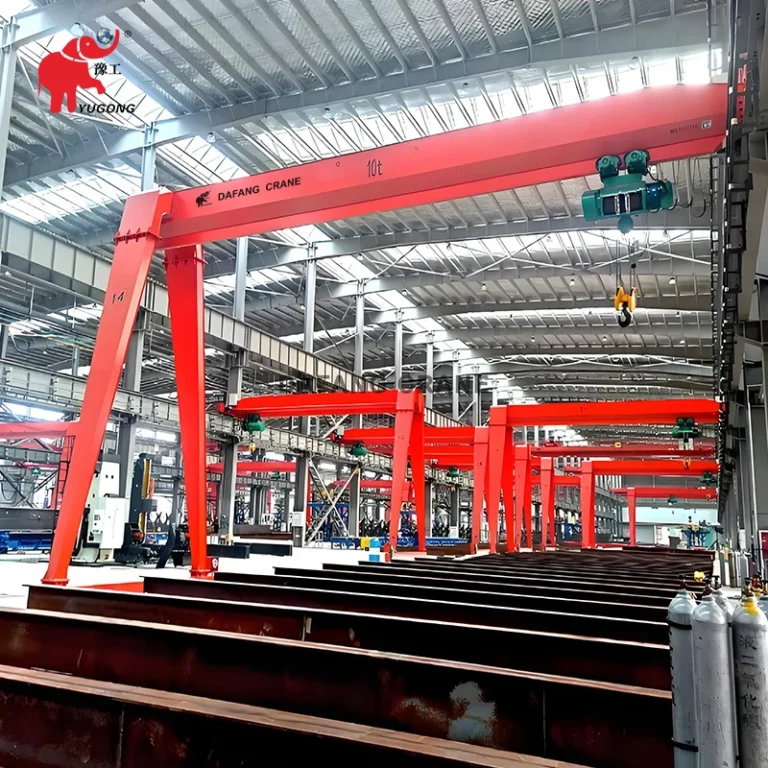

BMH Semi Gantry Crane Case1

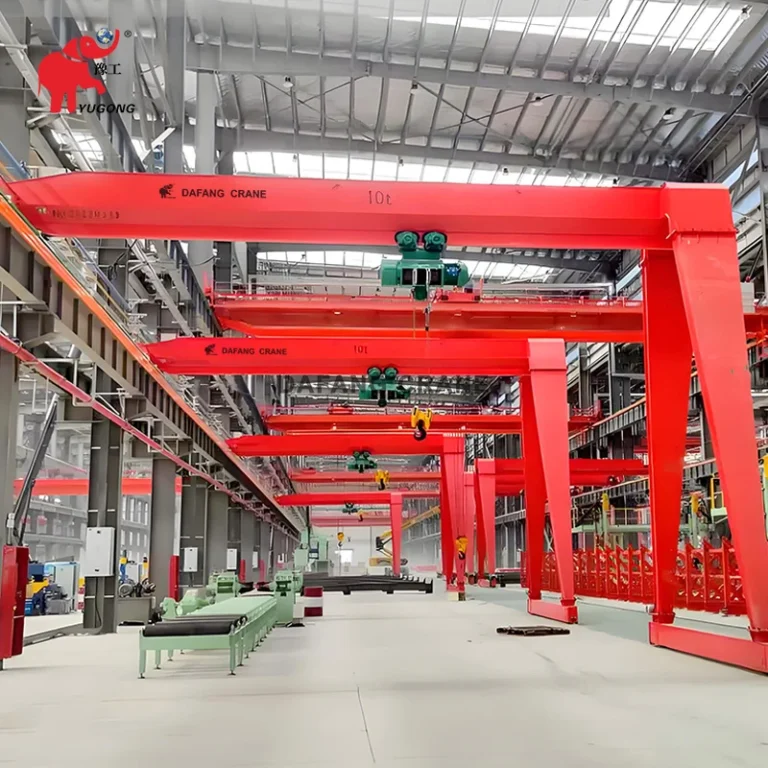

BMH Semi Gantry Crane Case2

Structure

BMH semi gantry crane is a highly flexible lifting equipment. It has a compact structure, suitable for small and medium-sized materials. Its main structure includes a main beam, legs on one or both sides, and an electric hoist.

The main beam is made of high-strength steel, with good rigidity and load-bearing capacity and the surface is anti-corrosion design for longer service life. It has support legs only on one side and the other side is connected to the wall or column of the factory building. This structural design reduces the overall footprint of the equipment and the weight of the equipment.

The electric hoist trolley is installed under the main beam, and the lifting and lateral movement of heavy objects is achieved through electric drive to ensure smooth operation and accuracy.

The running mechanism is located at the bottom of the outrigger and uses rubber tires with brake function to ensure smooth operation and positioning accuracy on the track. The entire system has advanced electrical control systems, including frequency converter and multiple safety protection devices to ensure operational safety and reliability.

BMH Type Semi Gantry Crane Features

The BMH semi-gantry crane is a specialized material handling equipment.

• Standardized core components facilitate maintenance and minimize downtime, effectively meeting industrial auxiliary handling needs.
• It utilizes a semi-gantry structure, which saves more space than a full-gantry crane. One side is supported by movable legs on ground rails, while the other side rests on rails on building beams or fixed brackets.
• With a load range of 5-50t, it is suitable for medium- and heavy-duty lifting needs. This crane is suitable for limited space in workshops, open-air storage yards, and other locations, eliminating the need for a full ground rail.
• Both the trolley and carriage operating mechanisms utilize variable frequency speed control, ensuring smooth movement and precise positioning, minimizing load sway.
• It is equipped with multiple safety devices, including overload protection, travel limits, and an emergency stop button. It can be operated manually or remotely.

Manufacturing Workshops

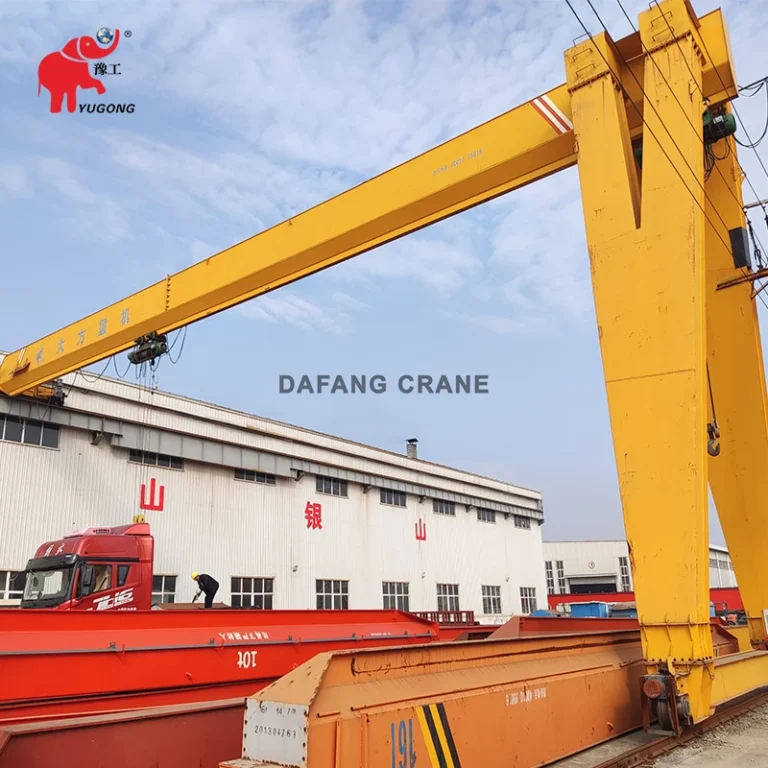

BMH Semi Gantry Crane Case4

BMH Type Semi Gantry Crane Application

• Light industrial manufacturing: suitable for small and medium-sized factories, to handle and install light equipment and parts to improve production efficiency, especially suitable for environments with limited space.
• Warehousing and logistics: in warehouses and distribution centers for loading, unloading, stacking and sorting operations of goods, optimize storage space utilization, and ensure efficient operation.
• Machinery workshop: to transport and locate raw materials and finished products for machine tool processing, providing accurate operating performance and ensuring the continuity of production processes.
• Automobile manufacturing and repair: in production lines and repair workshops, to hoist heavy-duty components such as engines and gearboxes to improve work efficiency.

Technical Parameters
