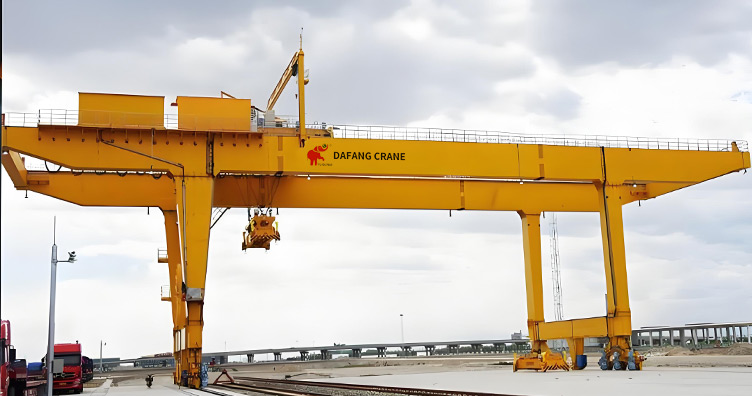

RMG Container Gantry Crane

RMG Container Gantry Crane Description

RMG Container Gantry Crane is a core equipment in the field of container logistics. It is mainly for container storage and loading or unloading operations in ports, railway freight yards and large logistics parks. RMG gantry crane is fixed on the track. It has a double main beam structure and special container spreaders to achieve efficient and automated operations. It is suitable for the handling and loading and unloading of international standard containers and railway wide boxes in container yards or transfer stations such as ports, docks, railways, and logistics.

Parts of RMG Container Gantry Crane

The core parts of RMG container gantry crane are as follows:

Gantry frame: integral support foundation. The main beam is mostly an oblique box beam. The main beam connects the rigid legs by high-strength bolts or welding. The main beam hinges with the flexible legs. The end beam is connected by high-strength bolts. The gantry legs have rigid legs and flexible legs, both of which are box structures. Rigid legs are suitable for small and medium spans.
Trolley running mechanism: The drive device consists of a motor, brake, reducer, etc. The electronic control system with good speed regulation performance can prevent the wheels from slipping during braking.
Lifting mechanism: The wire rope drum type consists of a motor, brake, reducer, drum and pulley block. The rigid telescopic type consists of a lifting mechanism (such as wire rope, etc.) and a telescopic guide rail steel frame.
Trolley running mechanism: The driving part includes a motor, brake and reducer. The frame adopts a box beam or plate truss structure design.

In addition, the RMG gantry crane also has an electrical control system, a cab, anti-roll and slewing devices to ensure efficient and smooth operation.

Features of RMG Container Gantry Crane

Efficient operating capability: With double sling design, RMG Container Gantry Crane significantly improves loading and unloading efficiency. It enables fast positioning and continuous operation. This gantry crane is particularly suitable for high-throughput container yards.
Stable operation and energy-saving and environmentally friendly: Rail Mounted Container Gantry Crane uses fixed tracks. The tracks are laid flat to ensure smooth operation and reduce vibration and impact. It effectively reduces energy consumption and meets green environmental protection requirements.
High degree of automation and intelligence: RMG Gantry Crane is connected with the yard management system and the container terminal operating system. It can realize fully automated operation. Through laser scanning, GPS positioning and sensor technology, it can automatically identify the container position, plan the path and complete the loading and unloading tasks. It greatly reduces manual intervention, improves operation accuracy and safety, and reduces operating costs.

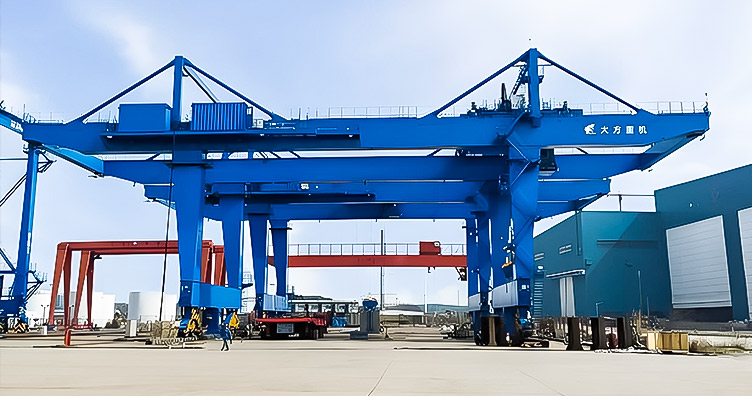

Gru a portale per container RMG

Application of RMG Container Gantry Cranes

Port container yard: For efficient loading and unloading, storage and transfer of import and export containers, support high throughput operations. Improve port logistics efficiency, and meet the rapid loading and unloading needs of large ships.
Railway freight station: At railway freight stations, to achieve rapid container transfer between railways and road transport, optimize multimodal transport processes. Improve cargo transit efficiency, and reduce transportation costs and time.
Logistics Park and Distribution Center: RMG Container Gantry Crane supports large-scale container storage, scheduling and distribution. It can meet the efficient operation needs of modern logistics, and improve the overall efficiency of the supply chain.

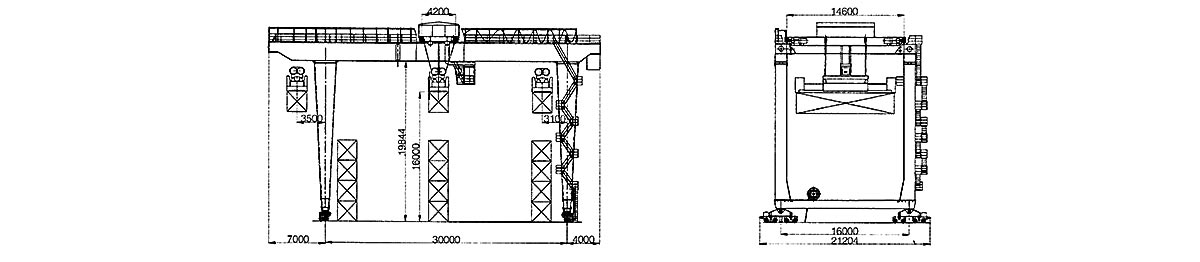

Parametri tecnici

Cpapcity of Spreader			Ton	30.5	35	40.5	50
Working Duty				A6	A6	A6	A6
Portata(m)			Meter	35	35	35	35
Base(m)			Meter	16	16	16	16
Lifting Height (m)			Meter	15.4	15.4	18.3	18.3
Velocità	Hoisting	With Full Load	m/min	12	12	18	18
	Hoisting	Only with spreader		24	24	36	36
	Trolley Tavelling			60	60	70	70
	Gantry Traveling			45	45	45	45
Total Power			kW	~200	~230	-255	~300
Max.working Lcad of Wheel			kN	260	260	280	300
Crane Rail				P50	P50	P50	QU80
Alimentazione				3-phase AC 50Hz 380V

RMG Container Gantry Crane Manufacturer and Supplier

Henan Dafang Crane has specialized in offering port container gantry cranes for 19 years since 2006. Dafang provides satisfactory RMG container gantry cranes to meet clients' needs. Besides, we also provide overhead cranes, light gantry cranes, electric hoists, hooks, crane wheels and jib cranes to meet customers' practical needs.
