L Type Single Girder Gantry Crane

L Type Single Girder Gantry Crane Description

The L-type single girder gantry crane is an efficient and flexible lifting equipment for small and medium-sized material handling needs. Meanwhile, this gantry crane type has a compact structure and is easy to operate.

The main beam adopts an L-shaped cross-section, which has high strength and stiffness, and can withstand large loads. The L-shape design allows the main beam to reduce its weight while ensuring strength and improves the overall performance.

Its lifting mechanism is usually CD/MD electric hoist for lifting and moving cargo. Besides wire rope hoist, users could also choose electric trolley as lifting mechanism for heavier load capacity. The electric hoist can move laterally along the main beam to achieve precise positioning of goods.

The leg on one side is rigid legs, which are rigidly connected to the main beam, providing stable support. The other side is flexible leg, which is adjustable to accommodate track deviations and ground unevenness.

What is more, It can meet the lifting needs of different lifting height and span. L type single girder gantry crane is an ideal choice for factories, warehouses, workshops and other places.

L Type Single Beam Gantry Crane Features

Compact design: The L-shape structure saves space and is particularly suitable for working environments with limited height and area.
Strong flexibility: The span, height and lifting weight can be customized according to needs to adapt to a variety of working conditions.
Stable and reliable: High-quality steel and advanced welding technology to ensure that the equipment is sturdy and durable.

L-Frame Single Girder Gantry Crane Application

Produzione: per la movimentazione dei materiali, l'installazione e la manutenzione delle attrezzature sulle linee di produzione.
Magazzino e logistica: mainly for cargo loading and unloading, stacking and transshipment in warehouses.
Siti di costruzione: lifting and moving light building materials and equipment, thus improving efficiency.
Terminali portuali: adatto al carico e allo scarico e al trasporto su brevi distanze di piccole merci.
Manutenzione dell'officina: per la manutenzione delle apparecchiature, la sostituzione dei pezzi e altre operazioni.

Industrial Park

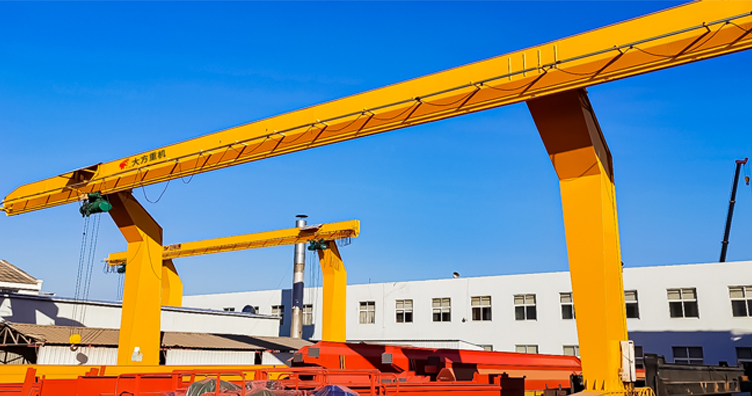

Gru a cavalletto a trave singola di tipo L

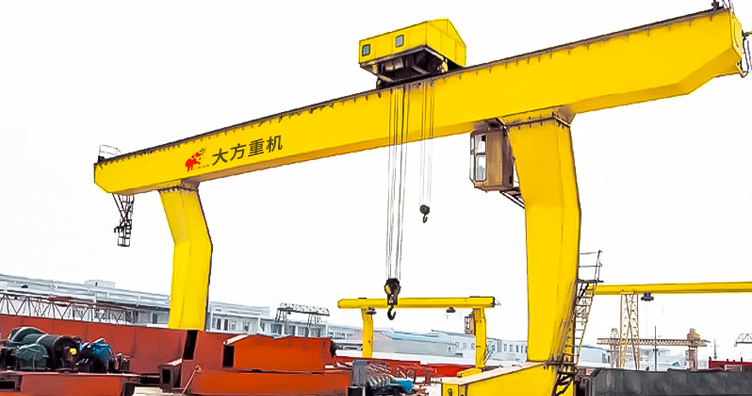

Gru a cavalletto a trave singola di tipo L

L-Type Single Girder Gantry Crane Parts

Main Beam

Support Legs

Ground Beam

Maintenance Cage

L-single-girder-gantry-crane-support-beam

Support Beams

Wheels

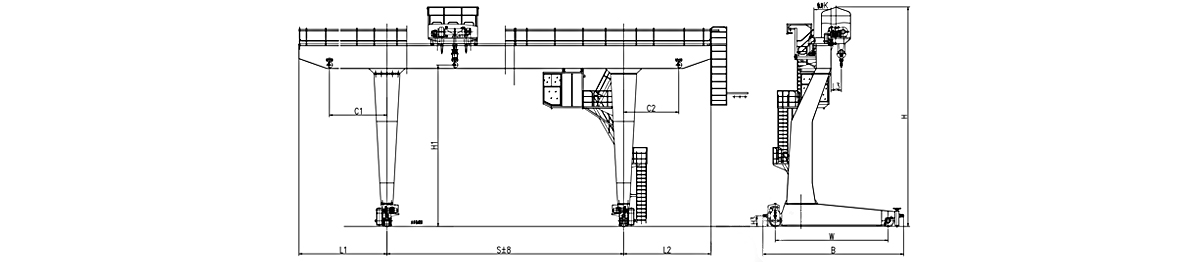

Parametri tecnici

Capacità di sollevamento			ton	5			10
Campata			contatore	16	20	30	16	20	30
Laltezza di regolazione			contatore	9			9
Meccanismo di traslazione della gru	Velocità di viaggio	Ground	m/min	20			20
		Cabina		20	30	40	20	30	40
	Motore	Ground		16,3KW	20,9KW		27,2KW	31,6KW
		Cabina		20,9KW	25,3KW		27,2KW	31,6KW
Velocità	Tipo			CD1	MD1		CD1	MD1
	Velocità di sollevamento		m/min	8	0.8/8		7	7/0.7
	Velocità di marcia		m/min	20			20
	Motore	Sollevamento		ZD1 41-4/7.5	ZDS1 0.8/7.5		ZD1 51-4/3	ZDS1 1.5/13
		Tsmanettamento		YSE802-4/0.8			YSE80-4/0.8X2
Work dovere				A3			A3
Gru rail rconsigliato				P38			P38	P43
Potenza supply				3P 380V 50HZ AC.			3P 380V 50HZ AC.
Max. wtallone pressione			kN	80	90	103	128	140	161
