Single Beam Gantry Crane

Portable Gantry Crane

• Capacity: 1~10 ton
• Span: 3~6 m
• Height: 2.5~6 m
• Trolley Traveling Speed: 2~20 m/min
• Crane Traveling Speed: 3~30 m/min

Application:

• Widely used in industries with high requirements on lifting equipment load capacity and operation safety. Such as manufacturing, steel plants, logistics and warehouses, power and energy industry etc..

Features:

• High load capacity, strong structural rigidity, and resistance to high temperature environment, strong anti-bending and anti-torsion capabilities, suitable for large lifting weights and large span operations.

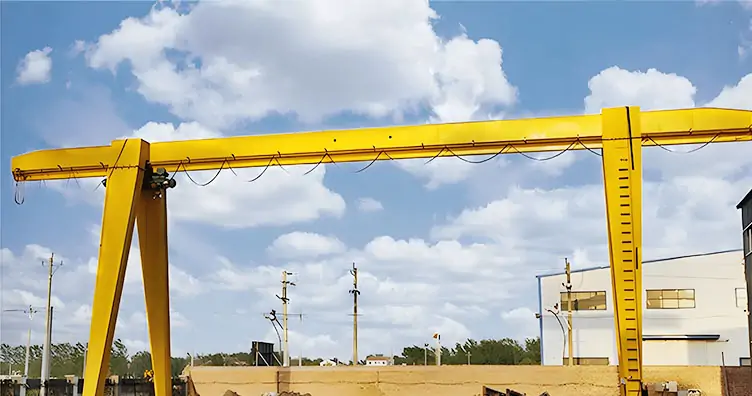

MH Box Single Beam Gantry Crane

• Capacity: 3.2~32 ton
• Span: 7.5~35 m
• Height: 6~12 m
• Hoisting Traveling Speed: 3~8 m/min
• Crane Traveling Speed: 20~30 m/min

Application:

• Widely used in industries with high requirements on lifting equipment load capacity and operation safety. Such as manufacturing, steel plants, logistics and warehouses, power and energy industry etc.

Features:

• High load capacity, strong structural rigidity, and resistance to high temperature environment, strong anti-bending and anti-torsion capabilities, suitable for large lifting weights and large span operations.

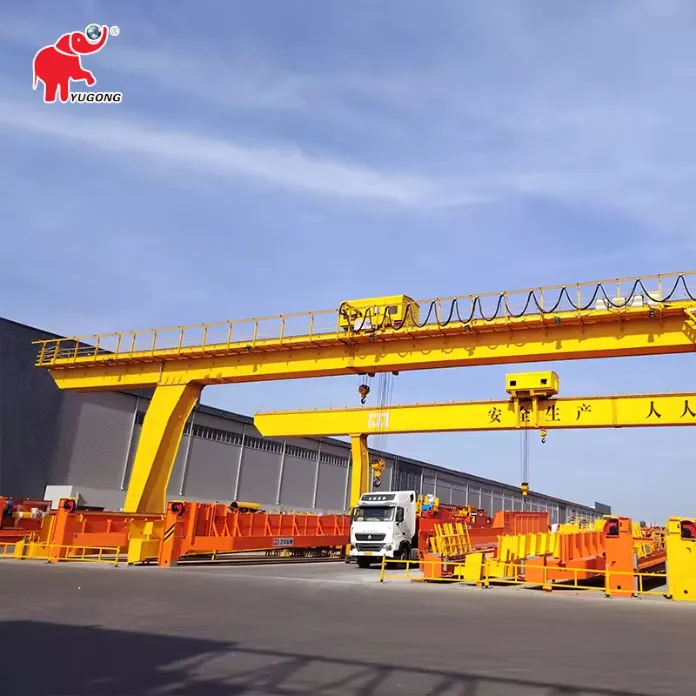

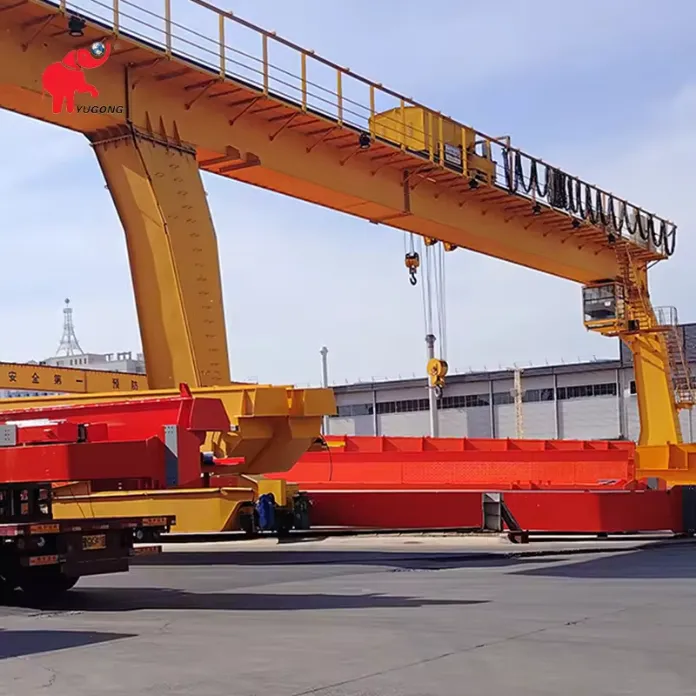

L Type Single Beam Gantry Crane

• Capacity: 5~10 ton
• Span: 10.5~25.5 m
• Height: 6~12 m
• Hoisting Traveling Speed: 20 m/min
• Crane Traveling Speed: 20~30 m/min

Application:

• Mainly used for lifting raw materials, semi-finished or finished products, bricks, steel bars and other construction materials, as well as loading and unloading goods on trucks and railway wagons in construction, logistics, manufacturing, steel factories and other industries.

Features:

• L-shaped frame has strong stability and high space utilization. Equipped with high-performance electric hoists to achieve accurate positioning and efficient handling of goods.

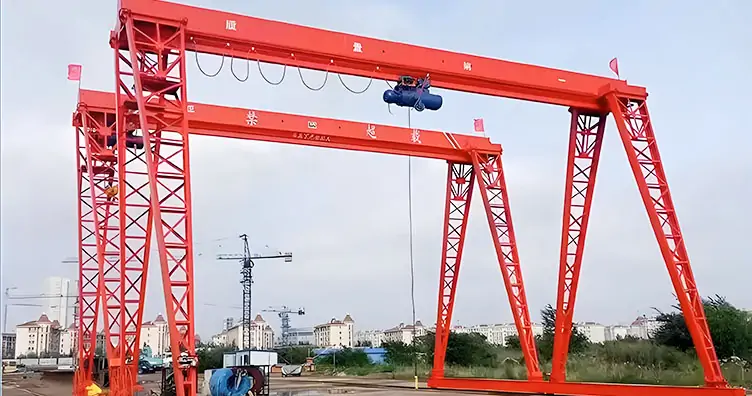

MH Truss Single Beam Gantry Crane

• Capacity: 3~20 ton
• Span: 7.5~31.5 m
• Height: 6~24 m
• Hoisting Traveling Speed: 3~8 m/min
• Crane Traveling Speed: 20~30 m/min

Application:

• Usually used for lifting heavy goods in construction, warehousing, machinery manufacturing, ports and other industries. Like steel plates, profiles, large components, containers, bundled goods, prefabricated components, engineering materials etc.

Features:

• The main structure often adopts steel tube truss structure. It has beautiful and coordinated appearance, light weight, strong wind resistance and large operating range.

BMH Semi Single Beam Gantry Crane

• Capacity: 2~16 ton
• Span: 5~20 m
• Height: 6 m
• Hoisting Running Speed: 2~20 m/min
• Crane Traveling Speed: 3~30 m/min

Application:

• Mainly used for lifting molds, raw materials, stone, glass, prefabricated panels, lifting prefabricated concrete parts, construction materials in small and medium-sized warehousing, logistics, workshop production lines, light industry, automobile manufacturing, and agriculture.

Features:

• It has high space utilization, low-cost maintenance, high positioning accuracy, and customizable anti-corrosion or anti-dust functions.

Customized Single Beam Gantry Cranes

Dafang Crane provides customized single beam gantry crane lifting solutions to meet clients' specific needs. We can provide modular designs to meet customers' special and practical needs to the greatest extent possible.

• Lifting Capacity: 1~32 ton
• Span: Adjustable to fit your needs (typically 2.5 m~35m)
• Lifting Height: Customizable (3 m~24 m)
• Control Options: Remote / Cabin control
• Lifting speed: Customizable （0.8/8 m/min）

If you have any specific demands or need further help, please contact our expert team. We will provide you with customized solutions and professional support.
