Hydraulic Power Gantry Crane

Hydraulic Power Gantry Crane Description

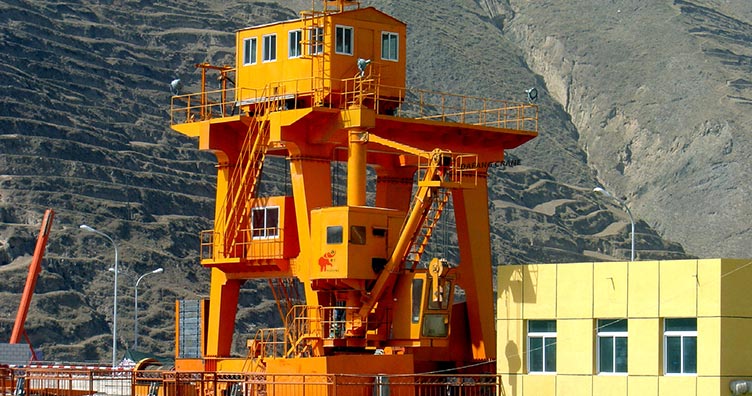

Hydraulic Power Gantry Crane is a special lifting equipment for hydropower stations. It is mainly for material handling and maintenance operations on the top of the dam. Hydraulic power gantry crane is specially for maintenance and water scheduling of hydropower station gates. It has a compact structure and strong wind and earthquake resistance. So it is suitable for harsh environments on the dam top. The modular design is easy to transport and install. The lifting mechanism can adapt to different types of gates (flat or curved). It is a key hydraulic machinery with high efficiency and high reliability, ensuring dam safety and water resource regulation.

Hydraulic Gantry Crane Structure

It consists of metal structure, lifting mechanism, walking mechanism and electrical control system.

• Metal structures include gantry (main beam, legs, end beam), driver's room and maintenance platform, with high-strength steel to ensure load-bearing capacity and stability.
• The lifting mechanism includes an electric trolley, a wire rope, a pulley set and a sling. Walking mechanism relies on the motor to drive the wheels to move along the track to achieve the horizontal positioning.
• Electrical control system has frequency conversion speed regulation, limit protection and remote monitoring modules to ensure accurate and safe operation.

Special Design Of Hydraulic Power Gantry Crane

High Wind Resistance And Stability

• Wind-resistant design: Considering wind resistance, the hydraulic station crane adopts special structural design to ensure safe and stable operation under high wind speed.
• Stability guarantee: The legs and track systems enhance the overall stability and prevent dam power gantry crane from displaced or overturning due to wind or other external forces.

Anti-corrosion And Waterproof Functions

• Corrosion-resistant materials: Considering the humid working environment and corrosive substances, the key components are made of corrosion-resistant materials, such as stainless steel, galvanized steel, etc., to extend service life.
• Waterproof design: The electrical control system and other key components are waterproofed to ensure normal operation in humid environments. For example, sealed joints and waterproof housing can effectively prevent moisture from intrusion, avoid short circuits and other electrical failures.

Compact Design And Flexibility

• Space optimization: The dam top space is limited, so it is more compact, reducing the footprint while maintaining sufficient lifting capacity and range. This compact design allows hydraulic power gantry crane to move flexibly in a narrow space to adapt to complex working conditions.
• Multifunctional: It can not only carry out conventional material handling, but also for equipment maintenance, maintenance, with high adaptability.

Customized Solutions

• Customization for specific needs: According to different hydropower station needs, dam power gantry cranes can be customized, including load capacity, span, lifting height, etc. to meet specific engineering requirements.
• Modular design: Adopts a modular design concept, which is easy to transport, install and disassemble. It is especially suitable for projects that require frequent transfer of construction sites, improving the operability and flexibility.

Main Application of Hydraulic Power Crane

Technical Parameters

Hydraulic Power Gantry Crane Manufacturer and Supplier

Henan Dafang Crane has specialized in offering hydraulic power heavy gantry cranes for 19 years since 2006. Dafang provides satisfactory hydraulic gantry cranes to meet clients' needs. Besides, we also provide overhead cranes, light gantry cranes, electric hoists, hooks, crane wheels and jib cranes to meet customers' practical needs.
