5 Ton Gantry Crane

5 Ton MH Single Girder Gantry Crane

• Span: 7.5-30 m
• Height: 6-30 m
• Feature: Lightweight structure, quick installation, low energy consumption and anti-sway function.
• Industry: Manufacturing, logistics and warehousing, construction sites, metallurgical material handling.
• Application: Production lines loading and unloading, warehouse and workshops lifting, building material yards, machine and equipment maintenance.

5 Ton L Type Single Girder Gantry Crane

• Span: 10-35 m
• Height: 6-30 m
• Feature: Compact structure, L-shaped supporting leg, easy installation, precise positioning.
• Industry: Mechanical manufacturing, logistics and warehousing, metallurgy, outdoor construction sites.
• Application: Workshop material handling, warehouse loading and unloading, construction sites, chemical raw material transportation, production lines.

5 Ton Double Girder Gantry Crane

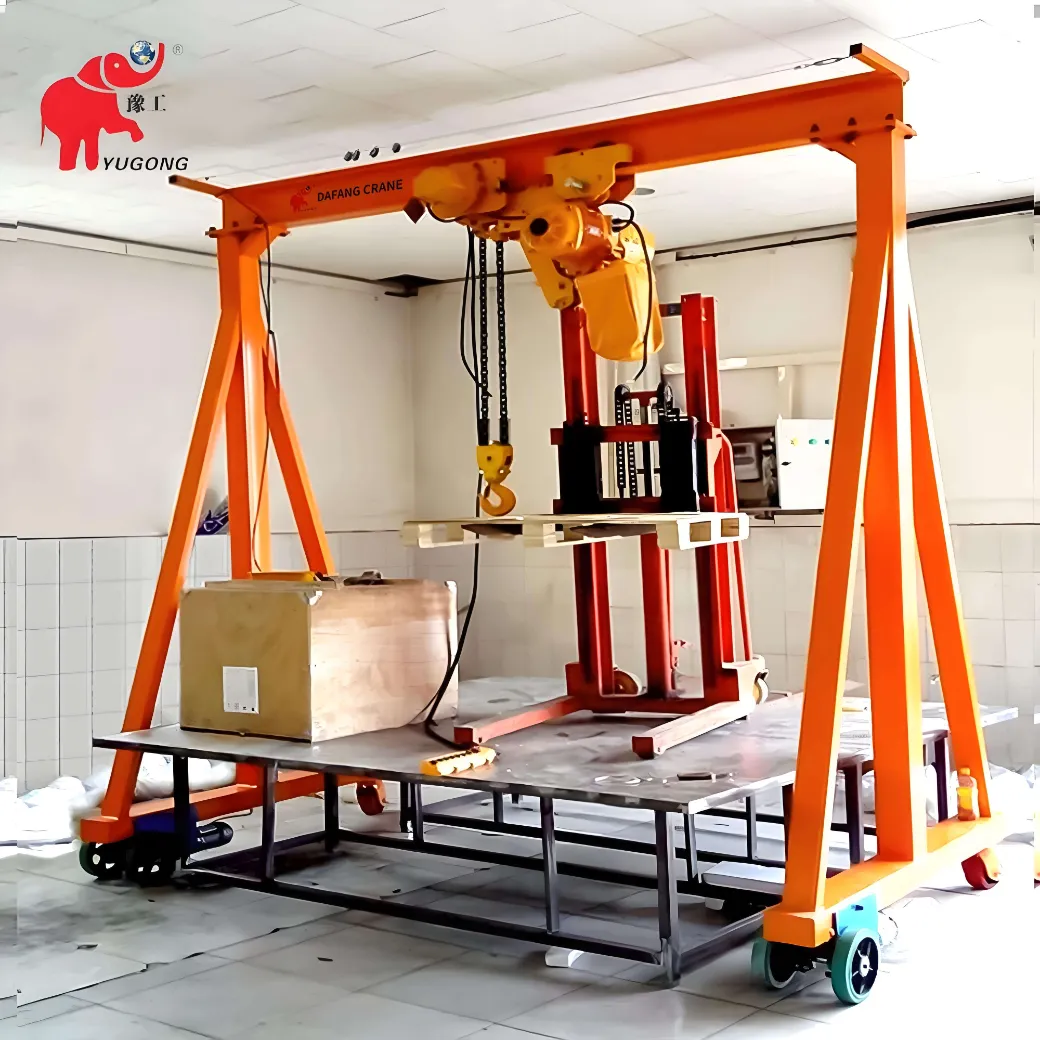

5 Ton Portable Gantry Crane

5 Ton A Type Double Girder Gantry Crane

• Span: 18-60 m
• Height: 10-50 m
• Feature: A-shaped support legs and strong stability, reduces wind resistance, enhances structural rigidity, and saves space at the leg base.
• Application: Logistics warehouses, steel smelting, thermal power generation, aerospace industry, heavy machinery manufacturing factories.
• Workshop material handling, warehouse loading and unloading, construction sites, equipment installation, small and medium-sized production lines.

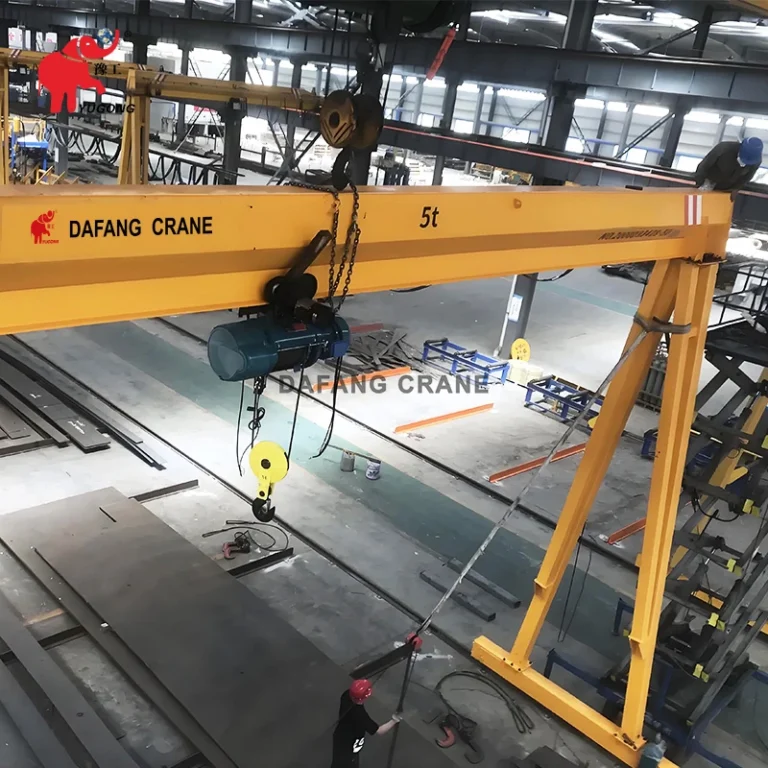

5 Ton BMH Single Girder Semi Gantry Crane

• Span: 3-20 m
• Height: 5-25 m
• Feature: Modular design, quick disassembly and assembly, no need for foundation, some models can be folded and stored. Manual pulling type hoist or electric hoist (optional wire rope/chain).
• Application: Small workshops, warehousing and logistics, equipment installation and maintenance, temporary engineering.
• Production processing, warehouse loading and unloading, machine equipment maintenance, hoisting and transferring of goods.

5 Ton Semi Gantry Crane

5 Ton Truss Gantry Crane

5 Ton BMH Single Girder Semi Gantry Crane

• Features a single main girder, with one set of support legs riding on ground rails and the other side relying on factory walls or concrete columns.
• It has a medium load capacity (2–10 ton), compact structure, and saves ground space. It is ideal for narrow workshops, small yards.
• It is cost-effective, easy to install, and suitable for handling light-to-medium materials like steel pipes, packages, or small machinery.

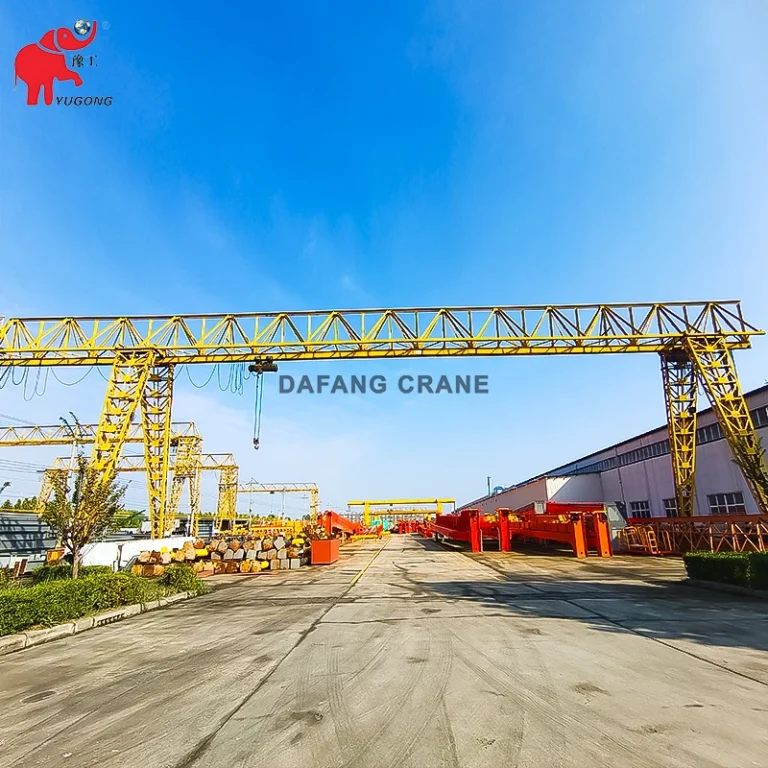

5 Ton MH Single Girder Truss Gantry Crane

• Features a single truss main girder (lightweight, material-saving structure) with an offset trolley running along one side of the girder.
• Its load ranges from 5 to 20 tons. It has lower self-weight and cost, and is easy to install and maintain. It is optimal for private enterprises with limited budgets.
• It is commonly used in small factories, warehouses, open-air construction sites for handling steel plates or packages.

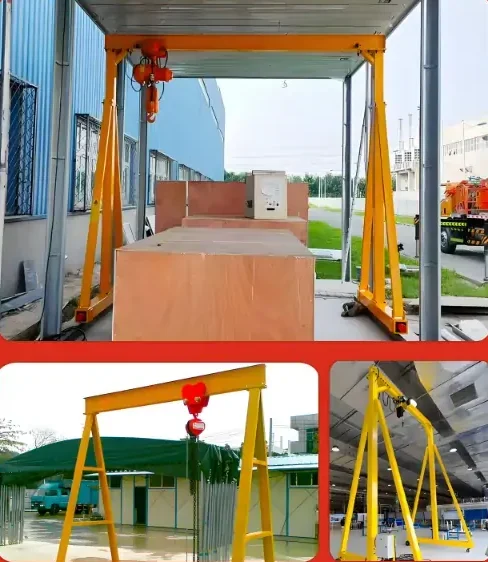

5 Ton Portable Gantry Crane In Logistics Warehouse

In an E-commerce logistics warehouse, a 5-ton Portable Gantry Crane becomes a core piece of equipment for improving operational flexibility. It plays three main roles:

1. Facilitates the assembly, handling, and positioning of 5-ton components to adapt to different warehouse layouts. It replaces traditional large equipment and reduces layout adjustment costs.

2. Optimizes the loading and unloading of overweight goods, enabling rapid hoisting, such as home appliances and industrial equipment, in narrow aisles and temporary stacking areas. It overcomes limitations of forklift operations and improves efficiency.

3. Ensures equipment maintenance, allowing for the rapid assembly of spare parts for hoisting and repair when forklifts or stacker cranes malfunction, preventing logistics disruptions.

Its portable assembly/disassembly and flexible deployment perfectly can adapt to diverse operational needs of the warehouse, empowering efficient warehousing and logistics.

5 Ton Truss Gantry Crane In Manufacturing Base

At an automotive manufacturing base, a 5-ton truss gantry crane efficiently supports the production system. Its lightweight truss structure is highly wind-resistant and adaptable to multi-span layout of the factory areas. It primarily plays three roles:

First, it handles the loading, unloading, storage, and transfer of 5-ton components such as engine blocks and transmissions from the raw material warehouse to the production lines.

Second, it coordinates large tooling and molds across workshops, reducing the high risks and low efficiency of manual handling.

Third, it undertakes hoisting operations in outdoor semi-finished product yards, precisely lifting heavy objects such as steel and assemblies in open-air environments.

With stable lifting performance, it improves the efficiency of material flow within the factory area. It becomes the key equipment to ensure production capacity.
