Portable Gantry Crane

Descrizione

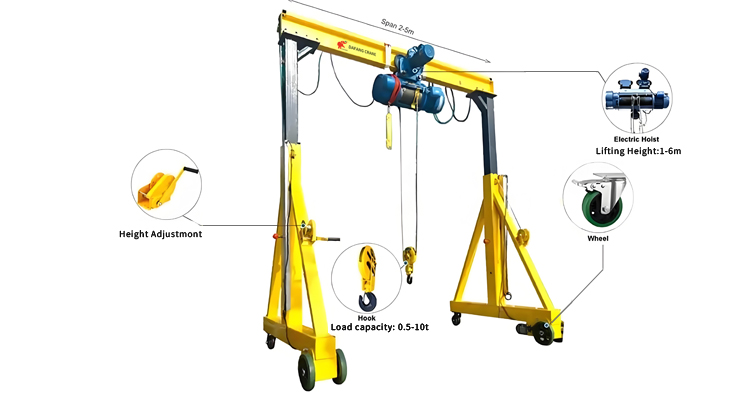

The Portable Gantry Crane is a flexible and mobile lifting device suitable for a variety of lightweight material handling tasks. Its main structure includes two columns, a cross beam and a movable hoist trolley. The columns are usually made of high-strength steel pipes with locking casters at the bottom, ensuring stability during use and flexibility when moving. The beam connects two columns to provide a support platform for lifting operations and can adjust the span as needed. The hoist trolley is mounted on a crossbeam and is equipped with an electric or manual winch for lifting and moving heavy objects. Its entire structure is compact and easy to disassemble and assemble, suitable for situations where space is limited and the need to frequently change the working position. This type of gantry crane is widely applicable to warehouses, workshops and construction sites.

Applicazione

Produzione: per la movimentazione dei materiali, l'installazione e la manutenzione delle attrezzature sulle linee di produzione.
Magazzino e logistica: mainly for cargo loading and unloading, stacking and transshipment in warehouses.
Siti di costruzione: sollevamento e movimentazione di materiali e attrezzature da costruzione leggeri, migliorando l'efficienza.
Terminali portuali: adatto al carico e allo scarico e al trasporto su brevi distanze di piccole merci.
Manutenzione dell'officina: per la manutenzione delle apparecchiature, la sostituzione dei pezzi e altre operazioni.

Caratteristiche

Efficiently complete the loading, unloading, stacking and transshipment of goods.
Flexible movement between different production areas to improve production efficiency.
A portable gantry crane can be used in areas that cannot be reached by large equipment to facilitate construction.
Lift heavier auto parts, such as engines and gearboxes, to improve the efficiency of repair work.

Parametri tecnici

Capacità	T	1	2	3	5	10
Lunghezza della campata	S(m)	3~6	3~6	3~6	3~6	3~6
Altezza di sollevamento	m	2.5~6	2.5~6	2.5~6	2.5~6	2.5~6
Velocità di sollevamento	m/min	0.8/8	0.8/8	0.8/8	0.8/8	0.7/7
Trolley Speed	m/min	2~20	2~20	2~20	2~20	2~20
Obbligo di lavoro		A2~A3	A2~A3	A2~A3	A2~A3	A2~A3
Wheel Diameter	mm	2150	2150	2150	2150	2200
