Marine Travel Lift

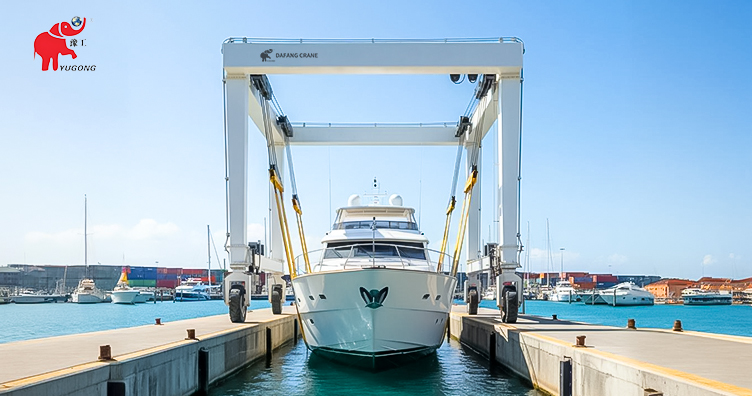

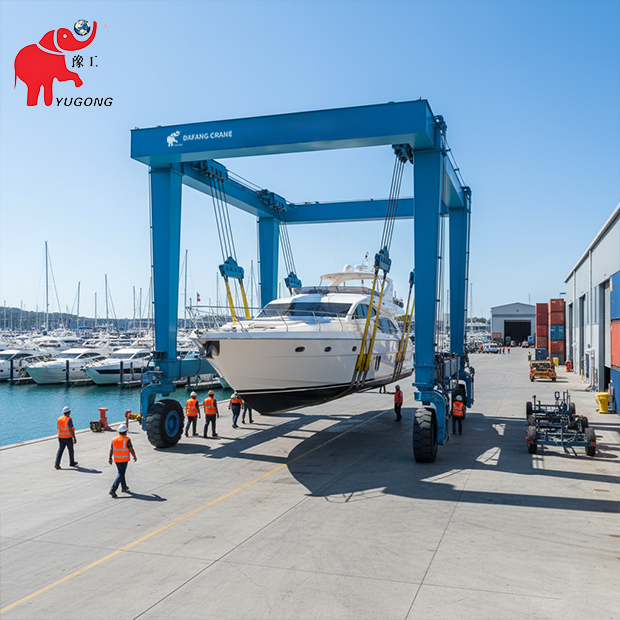

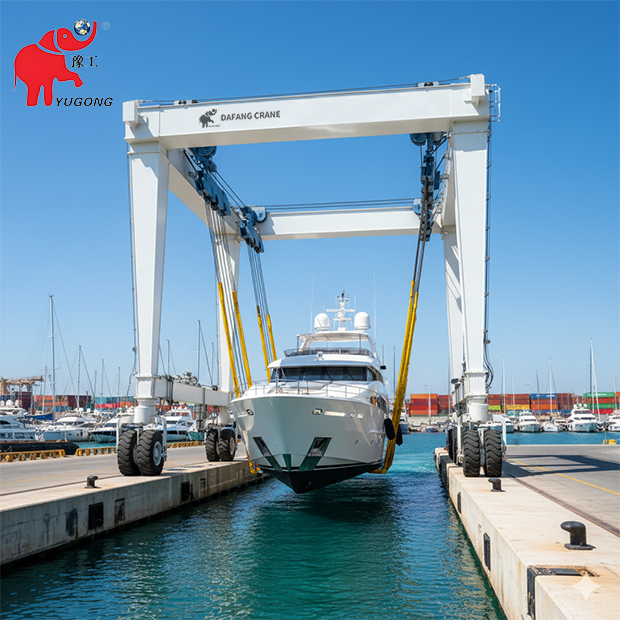

What Is Marine Travel Lift Crane?

Marine travel lift, also called as yacht crane, is a lifting equipment specially for yacht lifting, shifting and drainage operations. Its structural design requires stability, safety and operational convenience. The overall structure can be divided into three main parts: base support section, boom system and spreader actuator. Each section works together to ensure efficient and safe yacht lifting.

Base support section is the foundation part of the yacht crane, usually welded by high-strength steel structure and fixed to the dock, deck or mobile platform by anchor bolts or welding. This section contains a rotary support device (suitable for rotary cranes) that enables the boom to rotate horizontally to expand the operating range. The base usually integrates a hydraulic power unit or an electrical control system.

Boom system is the core stress-bearing component of a marine lift hoist. Its structural form includes fixed, telescopic or folding arm to meet different operating needs. The main boom adopts box-shaped beam or truss structure to reduce its weight while ensuring strength. The amplitude variable mechanism adjusts the elevation angle of the boom through a hydraulic cylinder or a wire rope pulley set to adjust the lifting radius.

The spreader is in direct contact with the yacht and is usually composed of a hook, a balance beam, a nylon suspender or a special fixture to ensure the even distribution of the load and avoid damage to the hull. Some yacht cranes are also equipped with anti-swing control system and automatic positioning function to make the lifting process more stable. In addition, safety devices such as overload protection, emergency braking and wind speed monitoring systems further enhance the reliability and safety of the equipment.

Yacht Crane Features

High Flexibility and Adaptability
- Marine boat lift crane has a 360-degree rotating platform and telescopic lifting boom design, which can flexibly respond to yacht handling needs of different sizes and weights. Its bottom is equipped with large tires or track wheels, allowing the equipment to move freely within the dock or shipyard to quickly respond to different operating location needs. This flexibility not only improves work efficiency, but also ensures operational ease and accuracy under various complex operating conditions.
Strong Load-bearing Capacity and Safety
- Key components, such as main beams and legs, adopt high-strength steel to ensure that the equipment has sufficient rigidity and stability and can withstand huge loads. In addition, the yacht travel lift crane is equipped with multiple safety protection devices, such as overload protection, limit switch and emergency stop button, and the hook has an anti-detachment design to ensure high safety during operation.
Advanced Control System and Intelligent Management
- With a frequency conversion speed regulation system and PLC control, the boat lift crane achieves continuously variable speed and smooth start and stop, improving operating accuracy and efficiency. It integrates a variety of sensors to monitor the status of the equipment in real time, supports remote monitoring and fault diagnosis functions, reducing downtime and improving overall operating efficiency and reliability.

Marine Boat Lift Application

Private Yacht Pier: In private yacht pier, boat travel lift is for yachts to carry and drain the water, ensuring that the yachts enter and exit the water safely and improve the user experience.
Commercial Yacht Club: Provide members with efficient and safe yacht lifting services, which improves yacht storage, maintenance and emergency handling.
Yacht Manufacturing and Repair Factory: During the yacht manufacturing and repair process, it is used to carry large parts and entire boats to improve production efficiency and safety.
Boat Show and Events: During boat show and event, loading and unloading and placing yachts quickly and efficiently to ensure smooth progress.

Parametri tecnici

Load Capacity	Lifting Speed m/min		Travelling Speed m/min	Maximum Grade ability	Lifting Mechanism/Lifting Point Number	Diesel Engine kw
Load Capacity	Full Load	Empty Load	Travelling Speed m/min	Maximum Grade ability	Lifting Mechanism/Lifting Point Number	Diesel Engine kw
32t	0~3	0~4	0~30	4%	4/4	90
50t	0~1	0~3	0~30	4%	4/4	110
64t	0~1	0~3	0~30	4%	4/4	110
100t	0~1	0~3	0~20	4%	4/8	120
150t	0~1	0~3	0~20	4%	4/16	120
200t	0~1	0~3	0~30	4%	4/16	150
300t	0~1	0~3	0~20	4%	4/32	250
350t	0~1	0~3	0~25	4%	4/32	230
400t	0~1	0~3	0~25	4%	4/32	300
500t	0~1	0~3	0~25	4%	8/32	2x130
550t	0~1	0~3	0~25	4%	8/32	2x150
600t	0~1	0~3	0~20	4%	8/32	2x185
700t	0~1	0~3	0~10	4%	8/32	2x200
800t	0~1	0~3	0~10	4%	8/32	2x230
